Запчасти Case IH MAXXUM 140 (35.106.AD) - VAR - 331145, 331146 + STD - HYDRAULIC PUMP 113 L/MIN CCLS - PUMP AND FILTER (35) - HYDRAULIC SYSTEMS

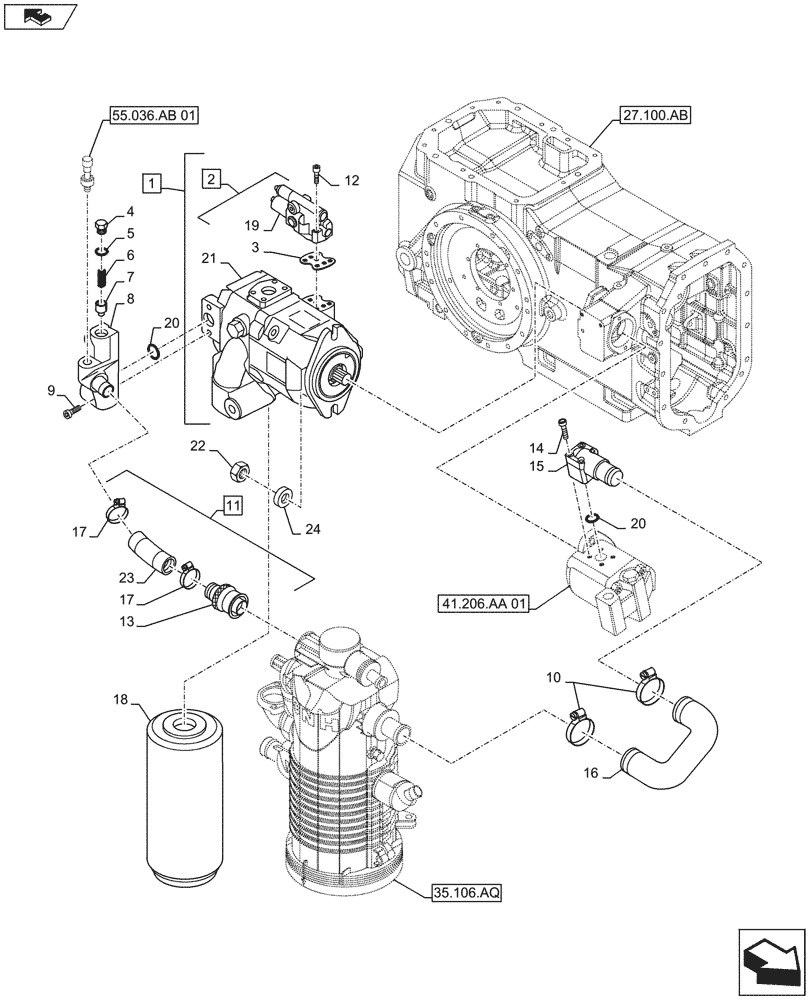

Схема запчастей Case IH MAXXUM 140 - (35.106.AD) - VAR - 331145, 331146 + STD - HYDRAULIC PUMP 113 L/MIN CCLS - PUMP AND FILTER (35) - HYDRAULIC SYSTEMS
35.106.aq
16
22
18
15
2
20
home
12
19
17
7
10
5
20
24
9
14
6
8
3
21
17
4
1
11
13
23
27.100.ab
55.036.ab 01
41.206.aa 01

Артикул

Название

Примечание

Количество

1

84471387

HYDRAULIC PUMP,45 CC

Incl 2, 12, 21

1шт.

2

84209779

COMPENSATOR

Incl 3, 19

1шт.

3

84209778

GASKET

1шт.

4

47123781

PLUG,M22 x 1.5

1шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

6

87722518

SPRING,12.5mm OD x 33.5mm L

1шт.

7

5169565

VALVE,By-Pass

1шт.

8

87491239

FLANGE

1шт.

9

14306421

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8

2шт.

10

82039346

HOSE CLAMP,30mm - 45mm, Worm Gear

4шт.

11

87492483

HOSE,32mm Bore Dia

Incl 13, 17, 23

1шт.

12

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

1шт.

13

87381694

HYD CONNECTOR,21mm D x 22mm D

1шт.

14

14306021

HEX SOC SCREW,M6 x 50mm, Cl 8.8

With Cl. 3 Front Axle

4шт.

14

14302231

SCREW,M8 x 55mm, Cl 10.9

With Cl. 4 Front Axle

4шт.

15

84466465

FLANGE

With Cl. 3 Front Axle

1шт.

15

84466463

FLANGE

With Cl. 4 Front Axle

1шт.

16

84168449

HOSE

1шт.

17

82036709

HOSE CLAMP,25mm - 40mm, Worm Gear

2шт.

18

84226258

HYDRAULIC OIL FILTER,94mm OD x 240mm L, 1" 3/8-12UNF

Suction Pump

1шт.

18

84226263

HYDRAULIC OIL FILTER,116.8mm OD x 295.4mm L, 1" 3/8-12UNF

1шт.

Larger Filter to be used after the first 50h on Models with CCLS Hydraulic System/Pump

1шт.

19

NSS

NOT SOLD SEPARAT

Valve Incl in 2

1шт.

20

14463680

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

2шт.

21

NSS

NOT SOLD SEPARAT

Pump, Incl in 1

1шт.

22

12164021

NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND

2шт.

23

NSS

NOT SOLD SEPARAT

Hose, Incl in 11

1шт.

24

10730821

WASHER,Flat, 14.40mm ID x 26.00mm OD x 3.00mm, R80, ZND

2шт.

Выбрано товаров: 28
