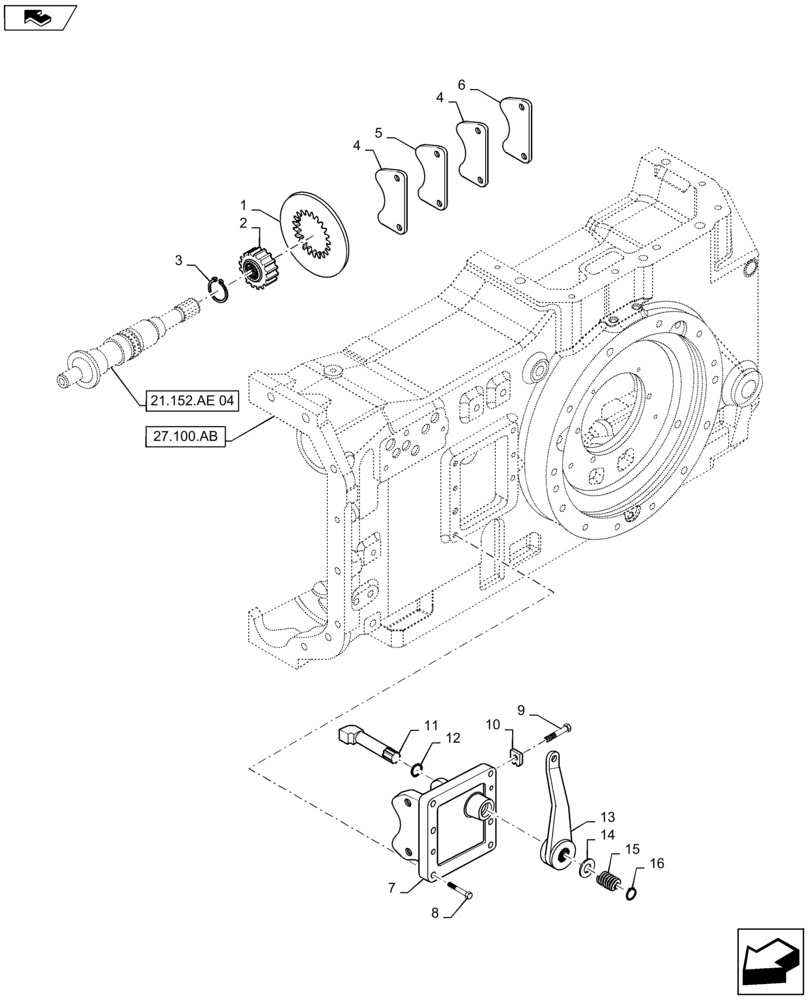

Запчасти Case IH MAXXUM 140 (33.110.AV[01]) - PARKING BRAKE (33) - BRAKES & CONTROLS

1

47127225

BRAKE DISC

4шт.

2

47127223

HUB,34T

1шт.

3

11071876

SNAP RING,M100, Ext

1шт.

4

5199607

BRAKE PAD,3.1mm Thk

Coating 1 Side

2шт.

5

5199788

BRAKE PAD,4.2mm Thk

Coating Both Sides

3шт.

6

47127226

BRAKE PAD,9mm Thk

Jaw, 9.00mm Thick

1шт.

7

47127186

SUPPORT

1шт.

8

15970924

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8

6шт.

9

47127227

SCREW,Hex, M14 x 1.5 x 92.5mm

2шт.

10

14199000

LOCKING PLATE

2шт.

11

47127313

LEVER

1шт.

12

14458080

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

1шт.

13

47130368

LEVER

1шт.

14

5198146

SHIM,28.1mm ID x 31.9mm OD x 4mm Thk

1шт.

15

5178904

SPRING

1шт.

16

11067676

SNAP RING,M28, Ext

1шт.
