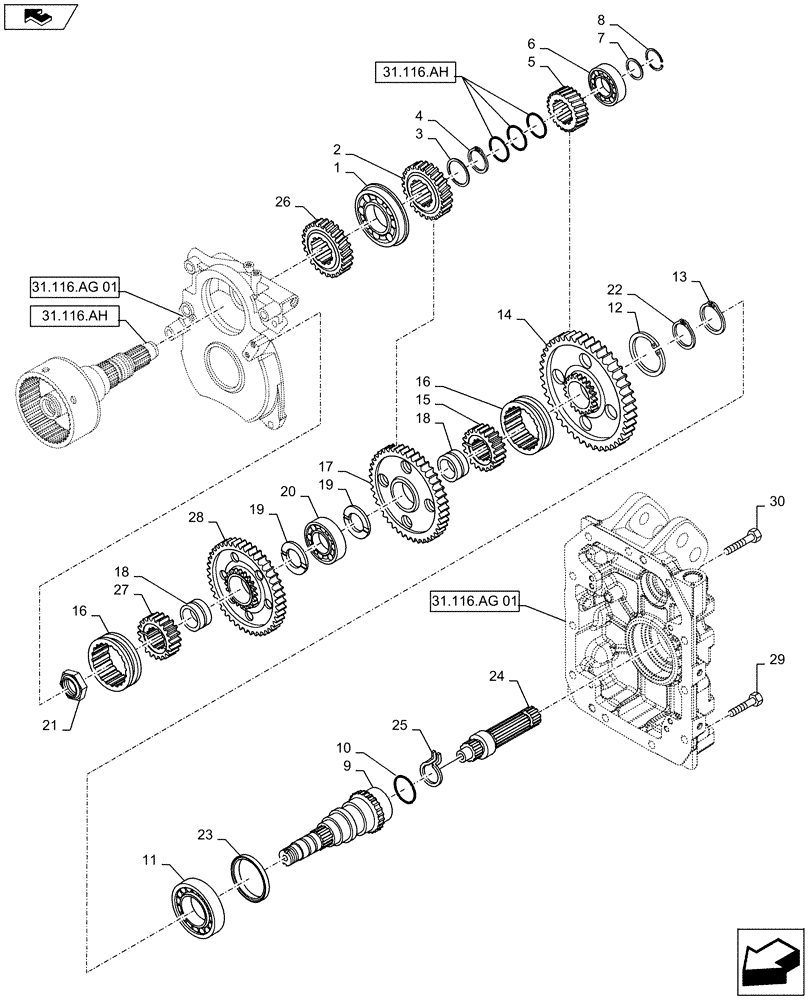

Запчасти Case IH MAXXUM 140 (31.116.AF[04]) - VAR - 332805 - 3 SPEED REAR PTO - GEARS, DRIVEN SHAFT AND OUTPUT SHAFT (31) - IMPLEMENT POWER TAKE OFF

1

5182640

BALL BEARING,65mm ID x 120mm OD x 23mm W

1шт.

2

84382929

GEAR,Z28

Driving, 1000 RPM

1шт.

3

5192262

THRUST WASHER,50.10mm ID x 60.00mm OD x 2.00mm

1шт.

4

5138419

SNAP RING,M50

1шт.

5

84289051

GEAR,Z19

Driving, 540E RPM

1шт.

6

5151460

ROLLER BEARING,35mm ID x 72mm OD x 17mm W

1шт.

7

5154308

THRUST WASHER,35.1mm ID x 43mm OD x 2mm Thk

1шт.

8

5154307

SNAP RING,M35

1шт.

9

47131255

DRIVE SHAFT,21T, 12T, 20T, 12T

540/540E/1000 RPM

1шт.

10

14459881

O-RING,2.237" ID x 2.443" OD x 0.103"

1шт.

11

26794670

BALL BEARING,65mm ID x 120mm OD x 23mm W

1шт.

12

11075976

SNAP RING,M120, Int

1шт.

13

5143130

SNAP RING,M60, Ext x 4mm

1шт.

14

84289050

GEAR,Z56

Driven, 540E RPM

1шт.

15

87578128

GEAR,21T Internal / 33T External

Fixed, 540/750

1шт.

16

87578126

SLEEVE,Z12

Sliding

1шт.

17

84382936

GEAR,Z53

Driven, 1000 RPM

1шт.

18

5192401

BUSHING,40mm ID x 48mm OD x 32mm L

2шт.

19

5192170

ANTI-WRAP PLATE

2шт.

20

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

21

5122985

NUT,Ring, M32, 1.5 Pitch

1шт.

22

47131733

RING,65mm ID x 88mm OD x 6.7mm Thk

Retainer

1шт.

23

5196487

OIL SEAL,80.00mm ID x 100.00 OD x 10.00mm

1шт.

24

47130743

PTO SHAFT,6T Splines, 182mm L

540 RPM

1шт.

25

87347166

SNAP RING,M45 x 3.12mm Thk, Ext

1шт.

26

84496105

GEAR,29T

Drive, 1000E RPM

1шт.

27

87578127

SLEEVE,Z12

1шт.

28

84496106

GEAR

Driven, 1000E RPM

1шт.

29

15981024

SCREW,Hex, M16 x 1.5 x 55mm, Cl 8.8

7шт.

30

11254124

BOLT,Hex, M16 x 1.5 x 80mm, Cl 8.8

4шт.
