Запчасти Case IH MAXXUM 140 (31.104.AY[02]) - VAR - 331802, 332802, 743679 - GROUND SPEED PTO - SUPPORT ASSEMBLY WITH VALVE (31) - IMPLEMENT POWER TAKE OFF

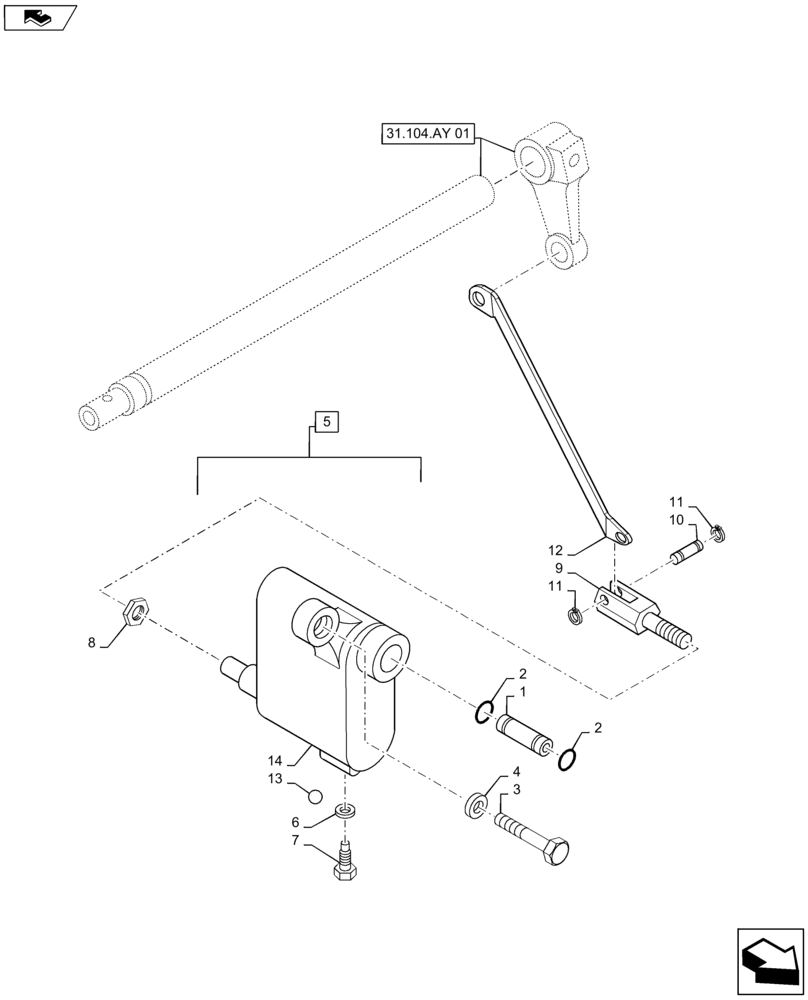

Схема запчастей Case IH MAXXUM 140 - (31.104.AY[02]) - VAR - 331802, 332802, 743679 - GROUND SPEED PTO - SUPPORT ASSEMBLY WITH VALVE (31) - IMPLEMENT POWER TAKE OFF
13
31.104.ay 01
14
2
4
5
10
6
11
home
3
7
8
11
12
9
1
2

Артикул

Название

Примечание

Количество

1

5192536

HYD CONNECTOR

1шт.

2

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

2шт.

3

15540724

SCREW,Hex, M12 x 1.25 x 45mm, Cl 8.8

1шт.

4

11197974

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD

1шт.

5

47127450

SUPPORT

Incl 6, 7, 13, 14

1шт.

6

10297860

SEAL,6mm ID x 12mm OD x 1.5mm Thk

1шт.

7

5166386

SET SCREW,M6 x 1 x 11.5mm, Cl 8.8

1шт.

8

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

9

47127789

CLEVIS

1шт.

10

5192675

PIN

1шт.

11

11063876

SPRING CLIP,M5 x 4mm

2шт.

12

47127558

LEVER

1шт.

13

20063470

BALL,7.9mm OD

2шт.

14

NSS

NOT SOLD SEPARAT

Valve Body, Incl in 5

1шт.

Выбрано товаров: 14
