Запчасти Case IH MAXXUM 140 (31.104.AR[07]) - SEMI-POWER SHIFT TRANSMISSION EXTERNAL CONTROLS FOR 40E KM/H AND 50KM/H - CONTROL VALVE - BREAKDOWN (31) - IMPLEMENT POWER TAKE OFF

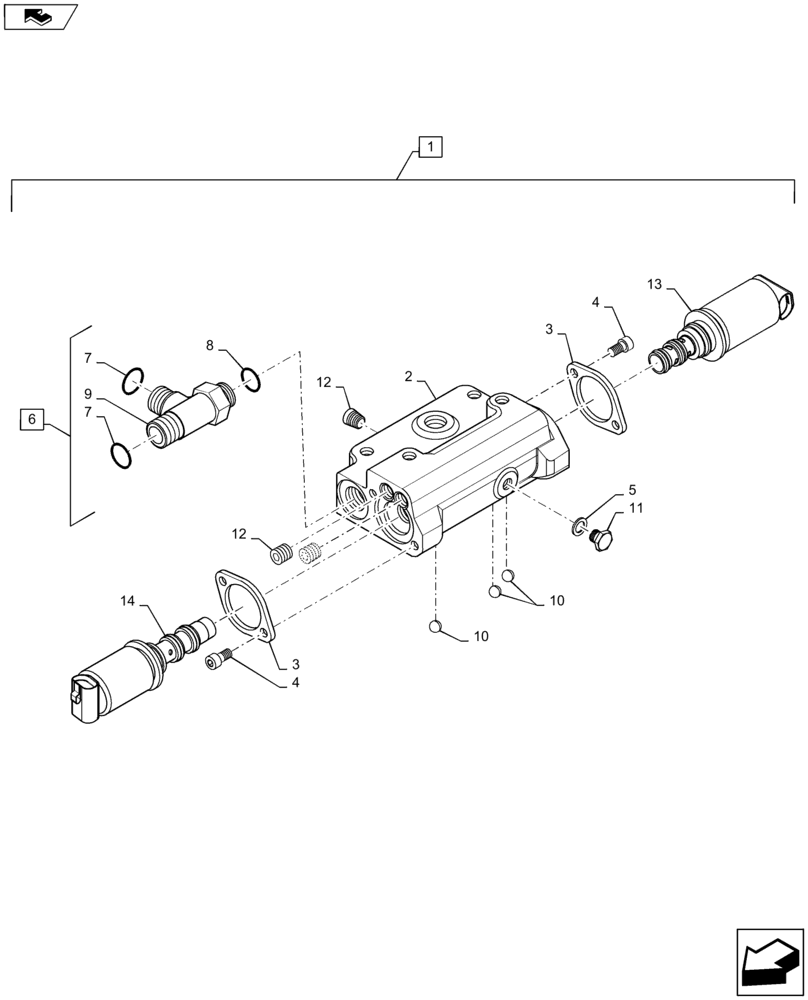

Схема запчастей Case IH MAXXUM 140 - (31.104.AR[07]) - SEMI-POWER SHIFT TRANSMISSION EXTERNAL CONTROLS FOR 40E KM/H AND 50KM/H - CONTROL VALVE - BREAKDOWN (31) - IMPLEMENT POWER TAKE OFF
12
8
10
7
3
5
6
2
12
4
9
home
10
13
3
11
1
14
4
7

Артикул

Название

Примечание

Количество

1

5197160

CONTROL VALVE

Incl 2 - 14

1шт.

2

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

3

5194826

BRACKET

2шт.

4

14305121

HEX SOC SCREW,M6 x 12mm, Cl 8.8

4шт.

5

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

1шт.

6

5194083

TEE

Incl 7 - 9

1шт.

7

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

2шт.

8

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

9

NSS

NOT SOLD SEPARAT

Tee, Incl in 6

1шт.

10

20063390

BALL,8.73mm OD

3шт.

11

11903011

PLUG,M10 x 1 x 11, Cl5.8

1шт.

12

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

3шт.

13

84276869

SOLENOID

17 Speed, 50Km/H Dump Clutch

1шт.

14

87739558

SOLENOID VALVE,14W

132mm, 17 Speed, 50Km/H Clutch

1шт.

14

87739558R

REMAN-SOLENOID

132mm, 17 Speed, 50Km/H Clutch

1шт.

14

87739558C

CORE-SOLENOID

Return Number

1шт.

Выбрано товаров: 16
