(27.120.AI) - VAR - 330331, 331331 + STD - HEAVY DUTY REAR FINAL DRIVES - HOUSING

Запчасти Case IH MAXXUM 140 (27.120.AI) - VAR - 330331, 331331 + STD - HEAVY DUTY REAR FINAL DRIVES - HOUSING (27) - REAR AXLE SYSTEM

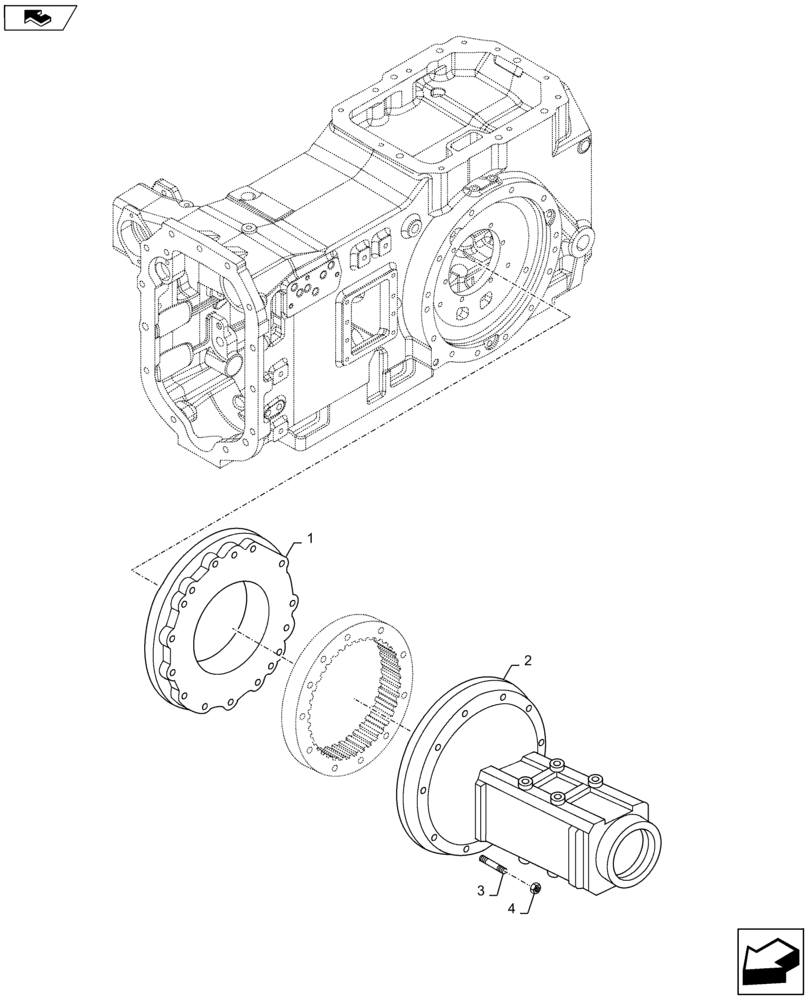

Схема запчастей Case IH MAXXUM 140 - (27.120.AI) - VAR - 330331, 331331 + STD - HEAVY DUTY REAR FINAL DRIVES - HOUSING (27) - REAR AXLE SYSTEM
4
home
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87608920

SPACER

2шт.

2

47124320

AXLE HOUSING

2шт.

3

13557730

STUD,M14 x 1.5 x 20mm x 145mm, Cl 10.9

12шт.

3

13557930

STUD,M14 x 1.5 x 20mm x 160mm, Cl 10.9

4шт.

3

13558430

STUD,M14 x 1.5 x 20.00mm x 170.00mm, Cl 10.9, PLN

8шт.

4

12164024

NUT,Hex, M14 x 1.5mm Pitch, Cl 10, DAC

24шт.
