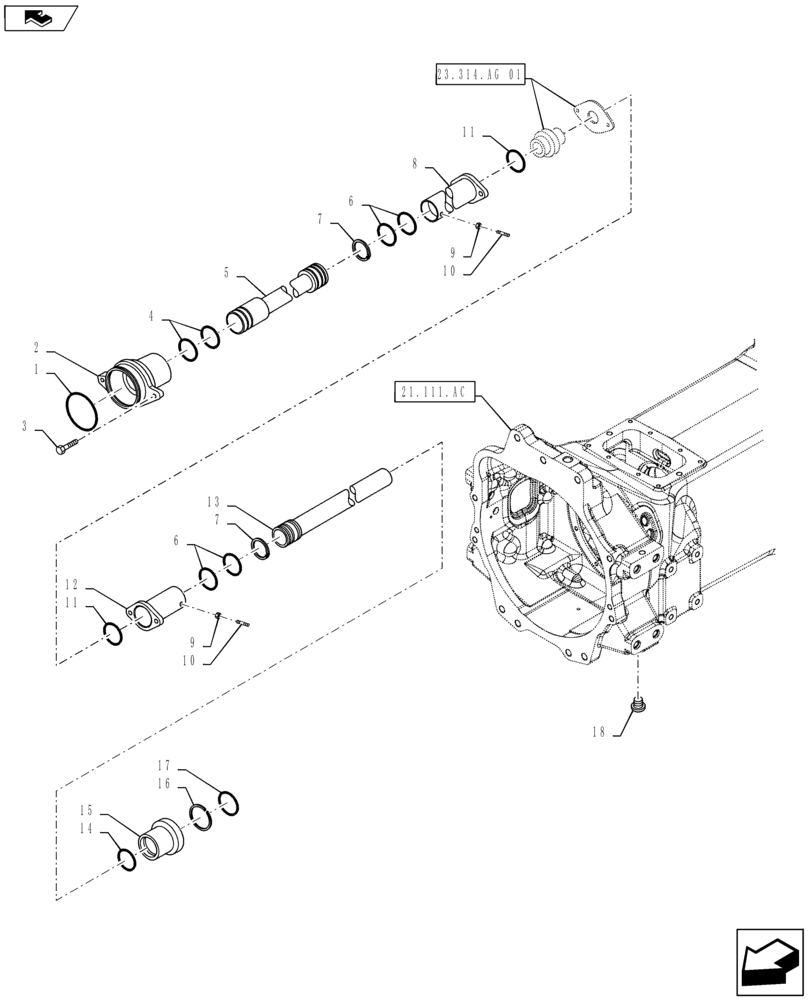

Запчасти Case IH MAXXUM 140 (23.314.AG[03]) - VAR - 330448, 336449, 743678 - WATERPROOFING FOR FIXED FRONT AXLE - SLEEVE, SHIELD & FLANGE (23) - FOUR WHEEL DRIVE SYSTEM

1

14461480

O-RING,4.237" ID x 0.103" Thk

1шт.

2

87637634

FLANGE

Class 3 Front Axle, VAR 330448, 743678, Maxxim 110, 120, 130

1шт.

2

87652095

FLANGE

Class 4 Front Axle, VAR 336449, 743678, Maxxum 115, 125, 140

1шт.

3

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

4

14459480

O-RING,0.103" Thk x 1.987" ID, -136, Cl 5, 75 Duro

2шт.

5

87656937

SHIELD

Class 3 Front Axle, VAR 330448, 743678, Maxxum 110, 120, 130

1шт.

5

87656935

SHIELD

Class 4 Front Axle, VAR 330448, 336449, 743678, Maxxum 115, 125, 140

1шт.

6

14459880

O-RING,56.82mm ID x 2.62" Width

4шт.

7

11069976

SNAP RING,M62, Ext

2шт.

8

47135470

FLANGE

1шт.

9

10791021

THIN NUT,Thin, M10 x 1.25, Cl 05

2шт.

10

13809631

SET SCREW,Hex Soc, M10 x 20mm, Flat Pt

2шт.

11

14460980

O-RING,75.87mm ID x 2.62" Width

2шт.

12

47125468

FLANGE

1шт.

13

47125851

SHIELD

1шт.

14

14459380

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

1шт.

15

47125477

BUSHING

1шт.

16

11061976

SNAP RING,M80, Int

1шт.

17

14465380

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

18

5145574

PLUG,M7 X 12.5mm

1шт.
