Запчасти Case IH MAXXUM 140 (23.314.AB[01]) - 4WD ELECTROHYDRAULIC ENGAGEMENT - 4WD TRANSMISSION SHAFT (23) - FOUR WHEEL DRIVE SYSTEM

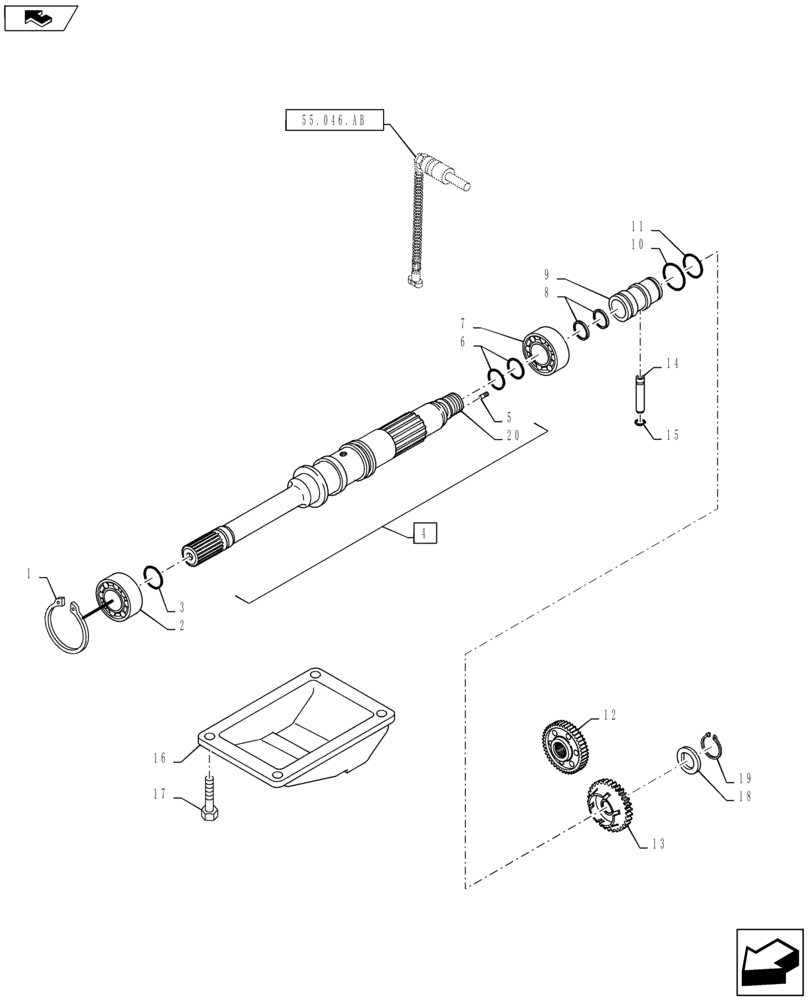

Схема запчастей Case IH MAXXUM 140 - (23.314.AB[01]) - 4WD ELECTROHYDRAULIC ENGAGEMENT - 4WD TRANSMISSION SHAFT (23) - FOUR WHEEL DRIVE SYSTEM
10
11
3
2
13
8
home
1
19
55.046.ab
9
4
6
20
15
5
14
18
7
16
17
12

Артикул

Название

Примечание

Количество

1

11062176

CIRCLIP,M85, Int

1шт.

2

ST202

BEARING, BALL,45mm ID x 85mm OD x 19mm W

1шт.

3

14458080

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

1шт.

4

5198208

SHAFT

Incl 5, 20

1шт.

5

13789620

SET SCREW,Hex Soc, M8 x 10mm, Flat Pt

1шт.

6

14458680

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

2шт.

7

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

1шт.

8

5185502

PISTON RING,28.5mm ID x 32mm OD x 2.1mm Thk

2шт.

9

47126668

MANIFOLD

1шт.

10

14459180

O-RING,45.69mm ID x 2.62"

1шт.

11

14458880

O-RING,40.94mm ID x 2.62" Width

1шт.

12

5193853

GEAR,37T

37 Teeth

1шт.

13

5193858

GEAR

54 Teeth

1шт.

14

47126672

PIN,10.5mm OD x 46.6mm L

1шт.

15

14452880

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

16

5193851

SHIELD

1шт.

17

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

18

5193862

THRUST WASHER

1шт.

19

5193966

CIRCLIP

1шт.

20

NSS

NOT SOLD SEPARAT

Shaft, Incl in 4

1шт.

Выбрано товаров: 20
