(21.152.AE [02]) - TRANSMISSION 16X16 AND 17X16 (40 KM/H), SPS - REVERSER GEARS

Запчасти Case IH MAXXUM 140 (21.152.AE [02]) - TRANSMISSION 16X16 AND 17X16 (40 KM/H), SPS - REVERSER GEARS (21) - TRANSMISSION

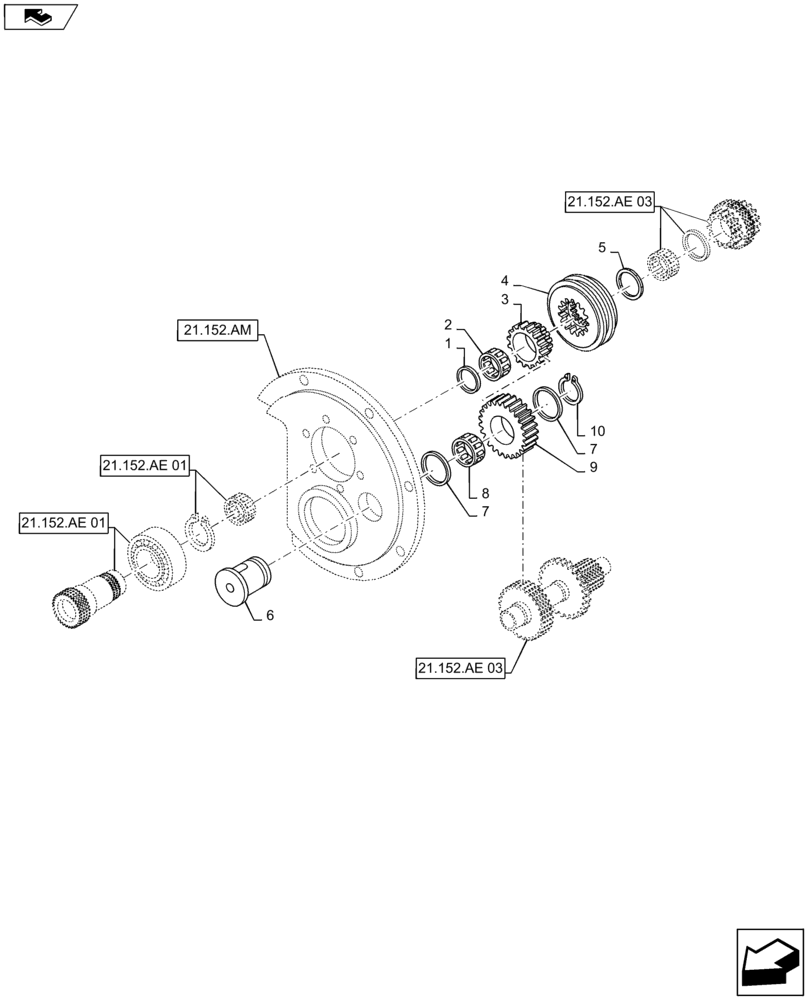

Схема запчастей Case IH MAXXUM 140 - (21.152.AE [02]) - TRANSMISSION 16X16 AND 17X16 (40 KM/H), SPS - REVERSER GEARS (21) - TRANSMISSION
21.152.ae 01
7
5
7
21.152.am
1
21.152.ae 01
9
2
21.152.ae 03
6
4
3
21.152.ae 03
home
10
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47126730

WASHER

Washer of Drive Gear

1шт.

2

81863566

BEARING ASSY,59.99mm ID x 65mm OD x 29.8mm W

1шт.

3

47126624

DRIVEN GEAR

1шт.

4

47124378

SYNCHRONIZER

Forward/Reverse

1шт.

5

47126700

SNAP RING

1шт.

6

82013692

SHAFT

1шт.

7

82012540

THRUST WASHER,35mm ID x 52mm OD x 2.5mm Thk

2шт.

8

81863099

BEARING ASSY,35mm ID x 45mm OD x 19.8mm W

1шт.

9

81863092

GEAR

1шт.

10

11068376

SNAP RING,M35, Ext x 1.5 Thk

1шт.
