(21.152.AA[07]) - TRANSMISSION 16X16 AND 17X16 (40 KM/H), SPS - SPEED ENGAGEMENT REAR CLUTCH - HOUSING AND C4 DISKS

Запчасти Case IH MAXXUM 140 (21.152.AA[07]) - TRANSMISSION 16X16 AND 17X16 (40 KM/H), SPS - SPEED ENGAGEMENT REAR CLUTCH - HOUSING AND C4 DISKS (21) - TRANSMISSION

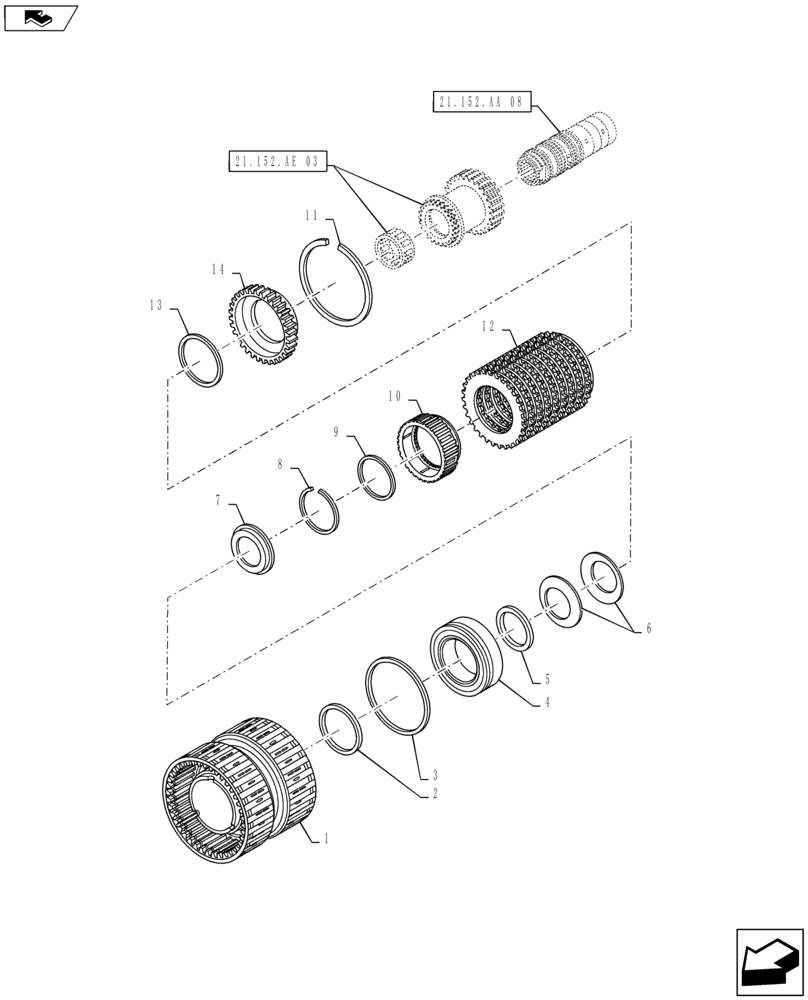

Схема запчастей Case IH MAXXUM 140 - (21.152.AA[07]) - TRANSMISSION 16X16 AND 17X16 (40 KM/H), SPS - SPEED ENGAGEMENT REAR CLUTCH - HOUSING AND C4 DISKS (21) - TRANSMISSION
13
12
4
7
14
3
2
6
10
1
8
9
home
21.152.aa 08
11
21.152.ae 03
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84513870

HOUSING

1шт.

2

5199232

SEALING RING

1шт.

3

5172302

GASKET,140.55mm ID x 148mm OD x 3.2mm Thk

1шт.

4

47136621

PISTON

1шт.

5

47136691

SPACER

1шт.

6

81864187

SPRING

8шт.

7

81865531

RETAINER,100.2mm ID x 112.4mm OD x 4mm Thk

1шт.

8

47136619

SNAP RING

1шт.

9

84345893

THRUST WASHER

1шт.

10

47136630

HUB

1шт.

11

84499451

SNAP RING

2шт.

12

47136624

CLUTCH PACK

Quantity of Discs Depending from the Total Thickness of the Stack, 45.4mm - 45.6mm

1шт.

13

81865152

SEAL,107.72mm ID x 116.32mm OD x 3.8mm Thk

1шт.

14

47136623

THRUST PLATE

1шт.
