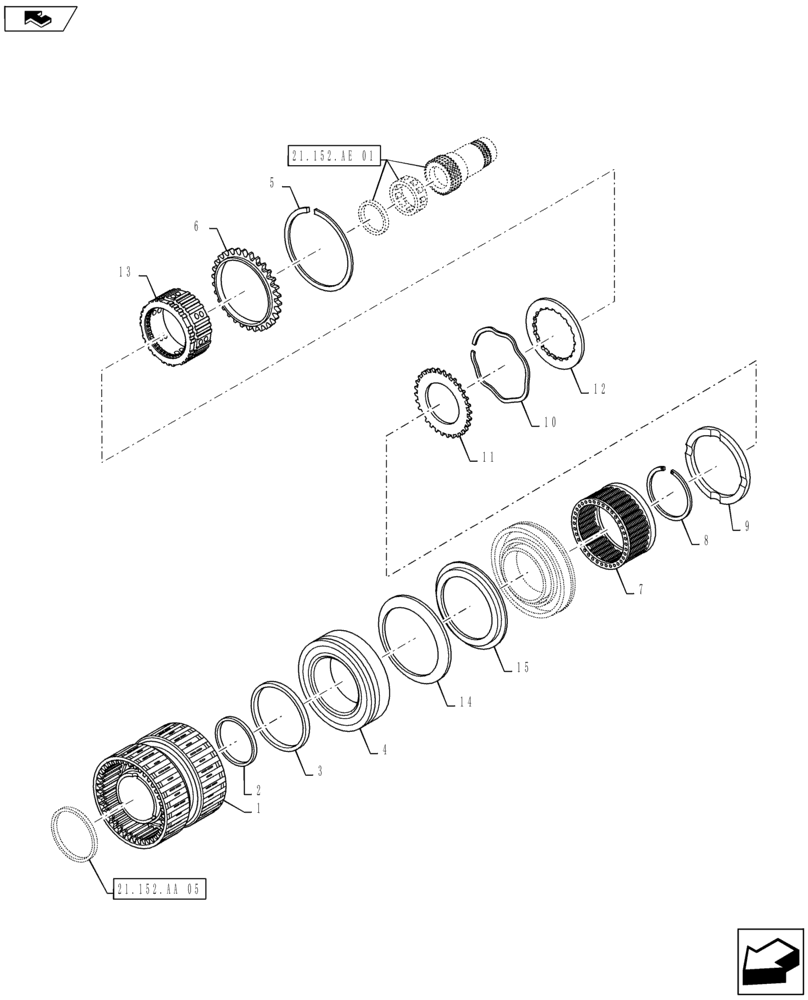

Запчасти Case IH MAXXUM 140 (21.152.AA[04]) - TRANSMISSION 16X16 AND 17X16 (40 KM/H), SPS - SPEED ENGAGEMENT FRONT CLUTCH - HOUSING AND C2 DISKS (21) - TRANSMISSION

47791659R

REMAN-CLUTCH ASSY

Complete Clutch and Disc Assembly

1шт.

47791659C

CORE-CLUTCH ASSEMBLY

Return Number

1шт.

1

47136592

BELL HOUSING

1шт.

2

47136601

GASKET,70.55 - 70.70mm ID x 78mm OD x 3.20mm Thk

1шт.

3

5137563

GASKET,124.55mm ID x 132mm OD x 3.2mm Thk

1шт.

4

84373555

PISTON

1шт.

5

5162251

CIRCLIP,142.5mm ID

1шт.

6

47136598

GEAR

1шт.

7

81864398

SPRING

1шт.

8

81863329

CIRCLIP

1шт.

9

47126729

SHOULDER

1шт.

10

81864341

SPRING,148.35mm ID

5шт.

11

47136596

NOTCHED DISK,119.6mm ID x 152.6mm OD x 2.2mm Thk

5шт.

12

5199726

NOTCHED DISK,114.78mm ID x 143.25mm OD x 1.65mm Thk

C1-C2

5шт.

13

47136602

HUB

1шт.

14

81872729

SPRING

1шт.

15

81871393

PISTON

1шт.
