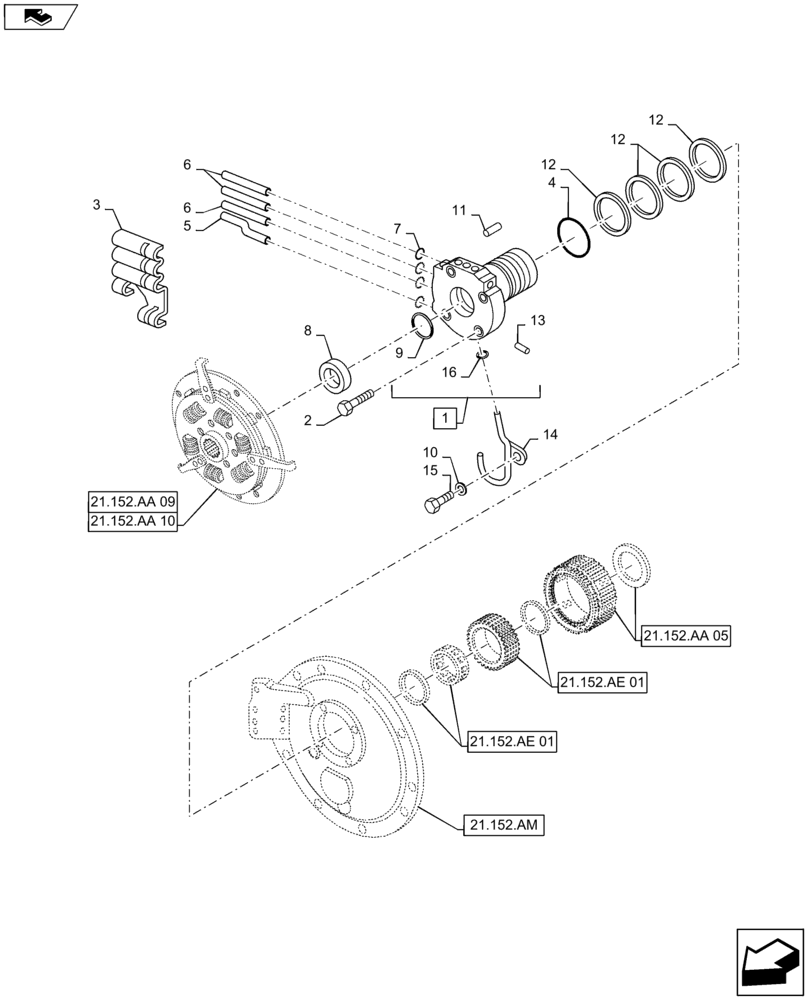

Запчасти Case IH MAXXUM 140 (21.152.AA[03]) - TRANSMISSION 16X16 AND 17X16 (40 KM/H), SPS - SPEED ENG. FRONT CLUTCH - OIL SUPPLY (21) - TRANSMISSION

1

47136814

MANIFOLD

Incl 7, 9, 11, 13, 16

1шт.

2

15970924

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8

4шт.

3

87347769

BRACKET

Oil Tube

1шт.

4

83911411

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

1шт.

5

81871372

TUBE,34, 29.3" Length

1шт.

6

81871373

TUBE,34, 29.3 mm Length

3шт.

7

81863108

SEAL

4шт.

8

87347725

SEAL,34.1mm ID x 50mm OD x 10mm Thk

1шт.

9

47131203

RING,36.04mm ID x 47.06mm OD x 4mm Thk

1шт.

10

12641001

WASHER,10.2mm ID x 20mm OD x 3mm Thk

1шт.

10

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

11

81872032

PLUG

Cup

6шт.

12

5197518

SEALING RING

4шт.

13

81863085

PLUG

1шт.

14

81871374

TUBE,42, 16 mm Length

Lube Oil Inlet

1шт.

15

14307330

HEX SOC SCREW,M10 x 1.25 x 20mm, Cl 10.9

2шт.

16

81863105

SEAL

1шт.
