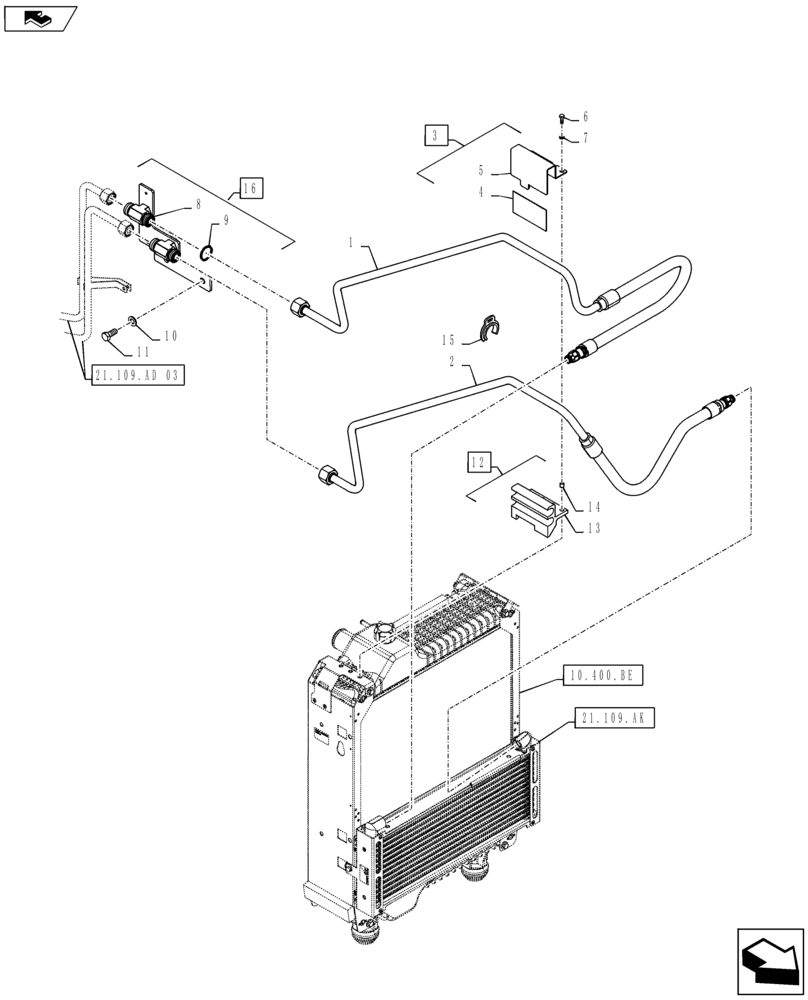

Запчасти Case IH MAXXUM 140 (21.109.AD[02]) - TRANSMISSION 16X16 AND 17X16 (40 KM/H), SPS - OIL COOLER PIPES (21) - TRANSMISSION

1

84470740

HYD TUBE

1шт.

2

84470751

HYD TUBE

1шт.

3

87649791

COVER

Incl 4, 5

1шт.

4

87639226

ADHESIVE

1шт.

5

NSS

NOT SOLD SEPARAT

Cover, Incl in 3

1шт.

6

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

3шт.

7

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

3шт.

8

NSS

NOT SOLD SEPARAT

Holder, Incl in 16

1шт.

9

81825117

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

10

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

3шт.

11

11112421

SCREW,Hex, M12 x 30mm, Cl 8.8

3шт.

12

87652575

SUPPORT

Incl 13, 14

1шт.

13

87314075

SUPPORT

1шт.

14

NSS

NOT SOLD SEPARAT

Insert, Incl in 12

3шт.

15

87363477

CLIP

2шт.

16

84136405

HOLDER

Incl 8, 9

1шт.
