(21.109.AC[02]) - STD + VAR 331145, 331146 - HYDRAULIC PUMP 113 L/MIN CCLS - OIL COOLER LINES FOR CL. 4 FRONT AXLE

Запчасти Case IH MAXXUM 140 (21.109.AC[02]) - STD + VAR 331145, 331146 - HYDRAULIC PUMP 113 L/MIN CCLS - OIL COOLER LINES FOR CL. 4 FRONT AXLE (21) - TRANSMISSION

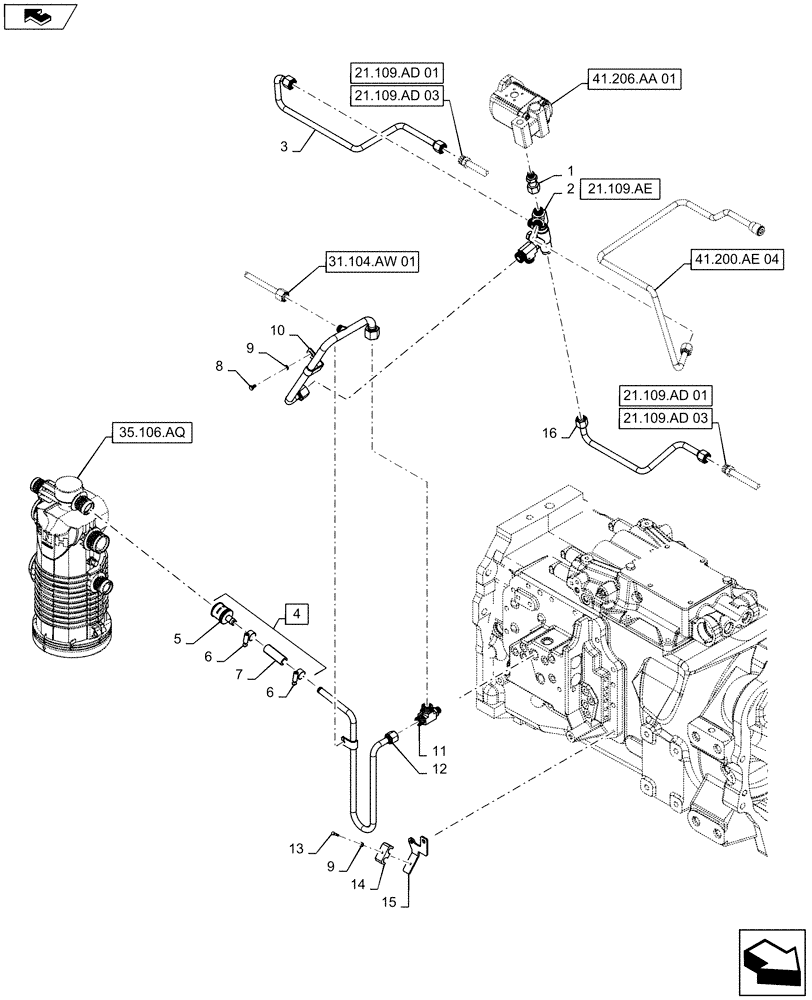

Схема запчастей Case IH MAXXUM 140 - (21.109.AC[02]) - STD + VAR 331145, 331146 - HYDRAULIC PUMP 113 L/MIN CCLS - OIL COOLER LINES FOR CL. 4 FRONT AXLE (21) - TRANSMISSION
9
21.109.ad 01
41.206.aa 01
9
35.106.aq
21.109.ae
6
7
8
4
12
13
2
15
1
5
21.109.ad 01
3
6
11
10
14
31.104.aw 01
41.200.ae 04
home
21.109.ad 03
16
21.109.ad 03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84168451

HYD CONNECTOR

1шт.

2

84475697

BY-PASS VALVE

1шт.

3

84539389

HYD TUBE

Oil Cooler Supply

1шт.

4

84352585

HYD CONNECTOR

Incl 5 - 7

1шт.

5

87330801

HYD CONNECTOR,21mm D x 12.5mm D

1шт.

6

82039344

HOSE CLAMP,20mm - 32mm

2шт.

7

84352586

HOSE,15.9mm ID x 70mm L, SAE 100R6

1шт.

8

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

9

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

10

84426858

PIPE

By-Pass Valve Lubrication

1шт.

11

84301632

HYD CONNECTOR

1шт.

12

84352582

HYD TUBE

Pressure, Lube

1шт.

13

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

1шт.

14

87608306

CLAMP BRACKET

1шт.

15

84549403

BRACKET

1шт.

16

84539331

HYD TUBE

Oil Cooler Return

1шт.
