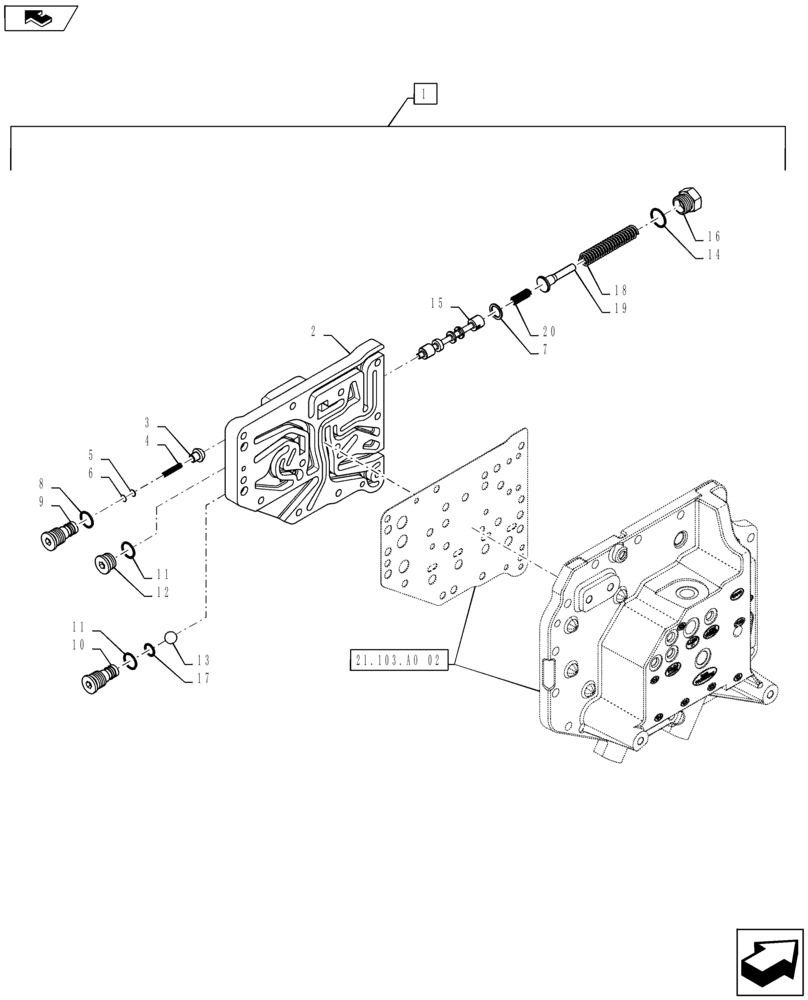

Запчасти Case IH MAXXUM 140 (21.103.AO[01]) - TRANSMISSION 16X16 AND 17X16 (40 KM/H), SPS - C1/C4 CLUTCH LUBRICATION OIL JOINTS (21) - TRANSMISSION

1

82021820

HYDRAULIC VALVE

Incl 2 - 20

1шт.

2

82021821

VALVE BODY

1шт.

3

82001890

POPPET

1шт.

4

82001891

SPRING

1шт.

5

82001893

SHIM

3шт.

6

82001894

SHIM

1шт.

7

82024902

WASHER

1шт.

8

83900080

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

1шт.

9

82024901

PLUG

1шт.

10

82001887

VALVE

1шт.

11

81832258

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

12

81867639

PLUG

1шт.

13

82001888

BALL

1шт.

14

81827365

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

82001886

SPOOL

1шт.

16

82001885

PLUG

1шт.

17

83925620

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

1шт.

18

82001884

SPRING

1шт.

19

82001883

STOP

1шт.

20

82001882

SPRING

1шт.
