Запчасти Case IH MAXXUM 135 (55.048.AK[01]) - VAR - 392195, 758413, 758415, 758581 - PTO CLUTCH, DIRECTIONAL CONTROL VALVE, SOLENOID (35KPH) (40KPH) (16X16) (55) - ELECTRICAL SYSTEMS

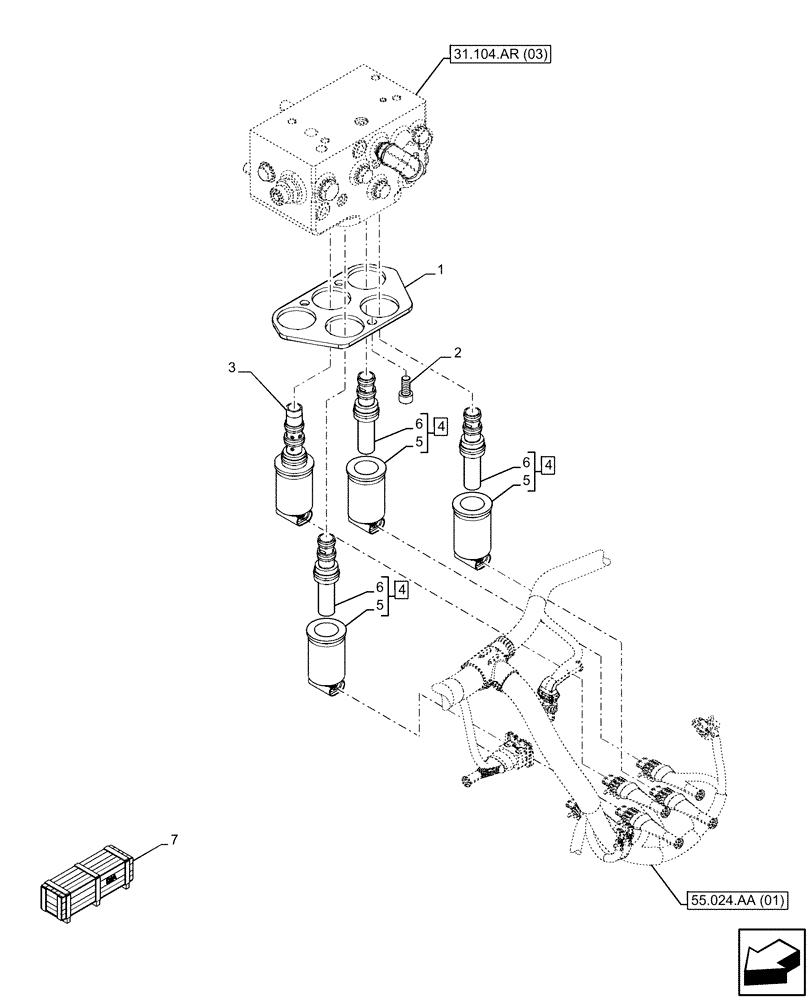

Схема запчастей Case IH MAXXUM 135 - (55.048.AK[01]) - VAR - 392195, 758413, 758415, 758581 - PTO CLUTCH, DIRECTIONAL CONTROL VALVE, SOLENOID (35KPH) (40KPH) (16X16) (55) - ELECTRICAL SYSTEMS
55.024.aa (01)
4
4
1
5
3
7
5
6
6
6
5
4
2
31.104.ar (03)

Артикул

Название

Примечание

Количество

1

5195317

PLATE

1шт.

2

14308521

HEX SOC SCREW,M10 x 1.25 x 90mm, Cl 8.8

3шт.

3

87739558

SOLENOID VALVE,14W

1шт.

4

84286799

SOLENOID VALVE,12V DC, 7.3Ohm

ASSY, Incl 5 (Qty 1), 6 (Qty 1)

3шт.

5

NSS

NOT SOLD SEPARAT

Body, Incl in 4

3шт.

6

84537085

SOLENOID VALVE,12V DC, 7.3Ohm

3шт.

7

718100014

DIA KIT, TRACTOR

Creeper 24X24/16X16, Incl 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 8
