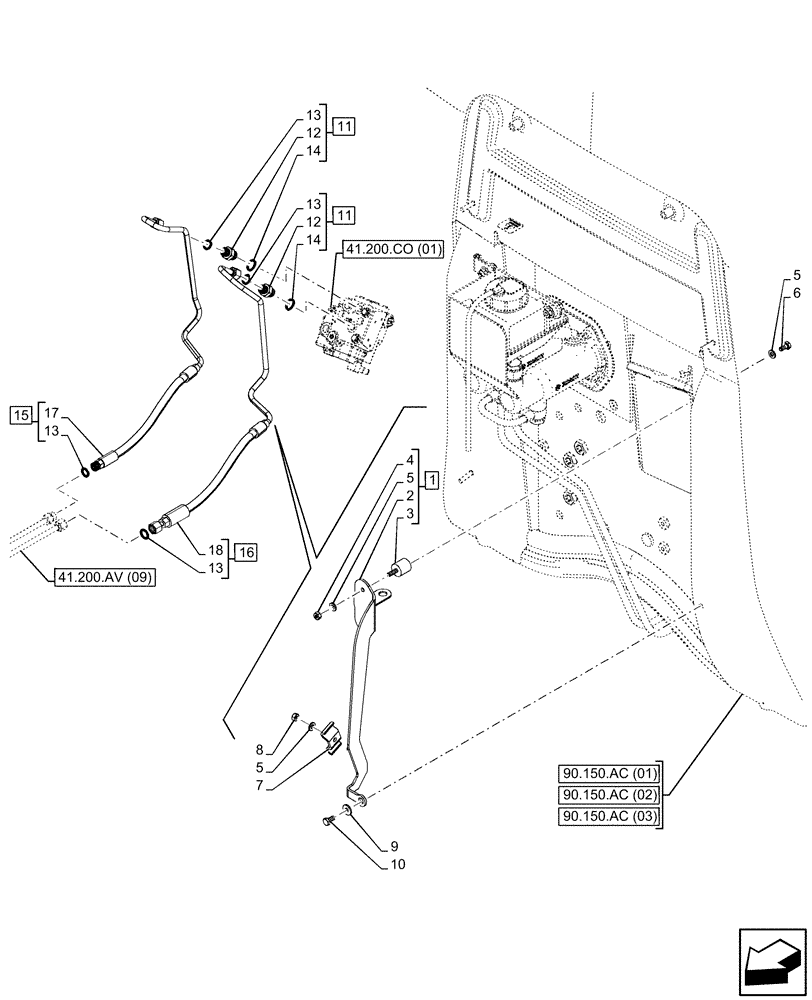

Запчасти Case IH MAXXUM 135 (41.216.AV[11]) - VAR - 391610, 758479, 758480, 758481 - STEERING CYLINDER, HYD. LINE, MTA (41) - STEERING

1

47611818

BRACKET

ASSY, Incl 2 - 4, 5 (Qty 2)

1шт.

2

NSS

NOT SOLD SEPARAT

Bracket, Incl in 1

1шт.

3

84485006

SHOCK ABSORBER

2шт.

4

86625072

NUT,Hex, M6, Cl 10

2шт.

5

14496404

WASHER,M6 x 12 x 2 Thk

5шт.

6

87391924

BOLT,Hex, M6 - 1 x 12mm, FULL, SST

2шт.

7

4999554

CLAMP,2 Hoses

1шт.

8

15896211

NUT,M6, Cl 8

1шт.

9

12647601

WASHER,6.15mm ID x 16mm OD x 2mm Thk

1шт.

10

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

11

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

ASSY, Incl 12 (Qty 1), 13 (Qty 1), 14 (Qty 1)

2шт.

12

NSS

NOT SOLD SEPARAT

Connector, Incl in 11

2шт.

13

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

14

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

15

47749252

PIPE

ASSY, Steering Right Faststeer, Incl 13 (Qty 1), 17

1шт.

16

47749254

PIPE

ASSY, Steering LeftFaststeer, Incl 13 (Qty 1), 18

1шт.

17

NSS

NOT SOLD SEPARAT

Pipe, Incl in 15

1шт.

18

NSS

NOT SOLD SEPARAT

Pipe, Incl in 16

1шт.
