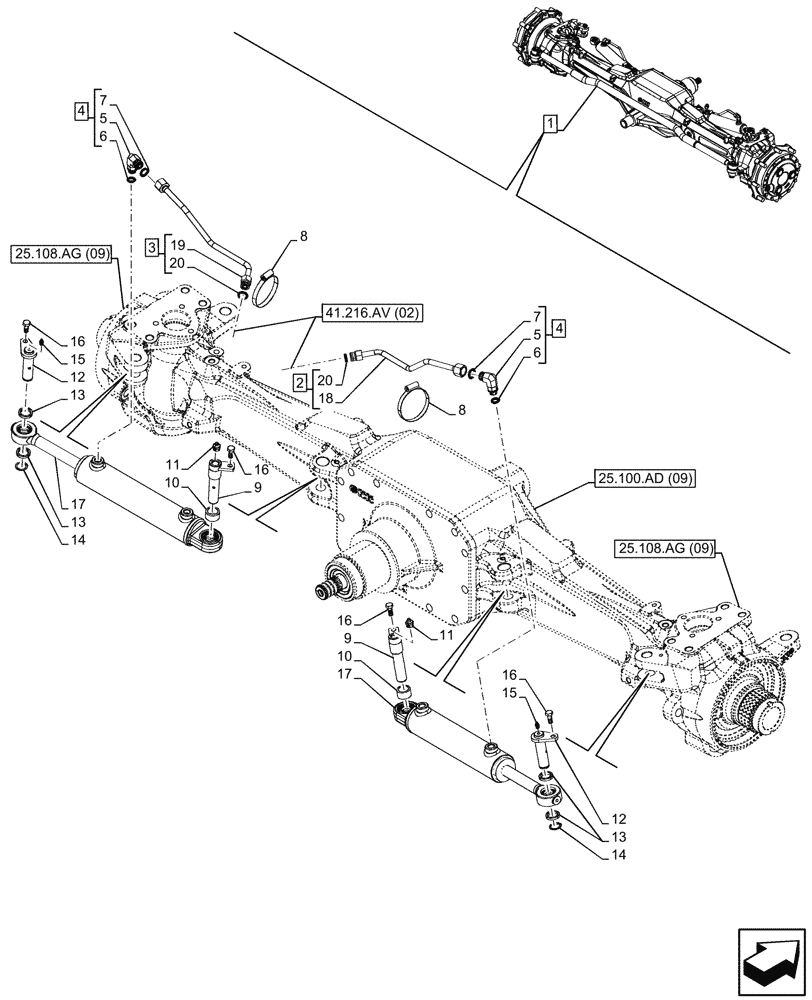

Запчасти Case IH MAXXUM 135 (41.216.AN[12]) - VAR - 392196, 758417, 758418, 758419 - FRONT AXLE, W/ LIMITED SLIP DIFFERENTIAL, STEERING CYLINDER (41) - STEERING

1

84180939

LIVE FRONT AXLE

ASSY, Incl 2 - 17

1шт.

See also Axle Components in Figure 25.100.AA (09), 25.100.AD (09), 25.108.AA (09), 25.108.AB (12), 25.108.AG (09)

1шт.

2

84233156

HYD TUBE,10.00mm OD x 276.00mm, 75.00mm L

RH, Steering Cylinder, ASSY, Incl 18, 20 (Qty 1)

1шт.

3

84233089

HYD TUBE,10.00mm OD x 276.00mm, 75.00mm L

LH, Steering Cylinder, ASSY, Incl 19, 20 (Qty 1)

1шт.

4

47127165

90 ELBOW

ASSY, Incl 5 (Qty 1), 6 (Qty 1), 7 (Qty 1)

2шт.

5

NSS

NOT SOLD SEPARAT

Elbow, Incl in 4

2шт.

6

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

7

14437785

O-RING,11.3mm ID x 2.4mm

2шт.

8

13000990

COLLAR,60mm - 80mm, Worm Gear

80mm

2шт.

9

5142048

PIN,19.98mm x 107.00mm

2шт.

10

5142223

SPACER,20.5mm ID x 28mm OD x 16mm L

2шт.

11

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

2шт.

12

5173252

PIN,19.98mm OD x 79.5mm L

2шт.

13

5100730

WASHER,20.5mm ID x 28mm OD x 5.25mm Thk

4шт.

14

11066871

CIRCLIP,M20

2шт.

15

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

2шт.

16

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

17

47582858

STEERING CYLINDER

2шт.

18

NSS

NOT SOLD SEPARAT

Pipe, RH, Incl in 2

1шт.

19

NSS

NOT SOLD SEPARAT

Pipe, LH, Incl in 3

1шт.

20

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.
