Запчасти Case IH MAXXUM 135 (35.701.AX[06]) - VAR - 758351 - FRONT LOADER HYDRAULIC SYSTEM, NA (35) - HYDRAULIC SYSTEMS

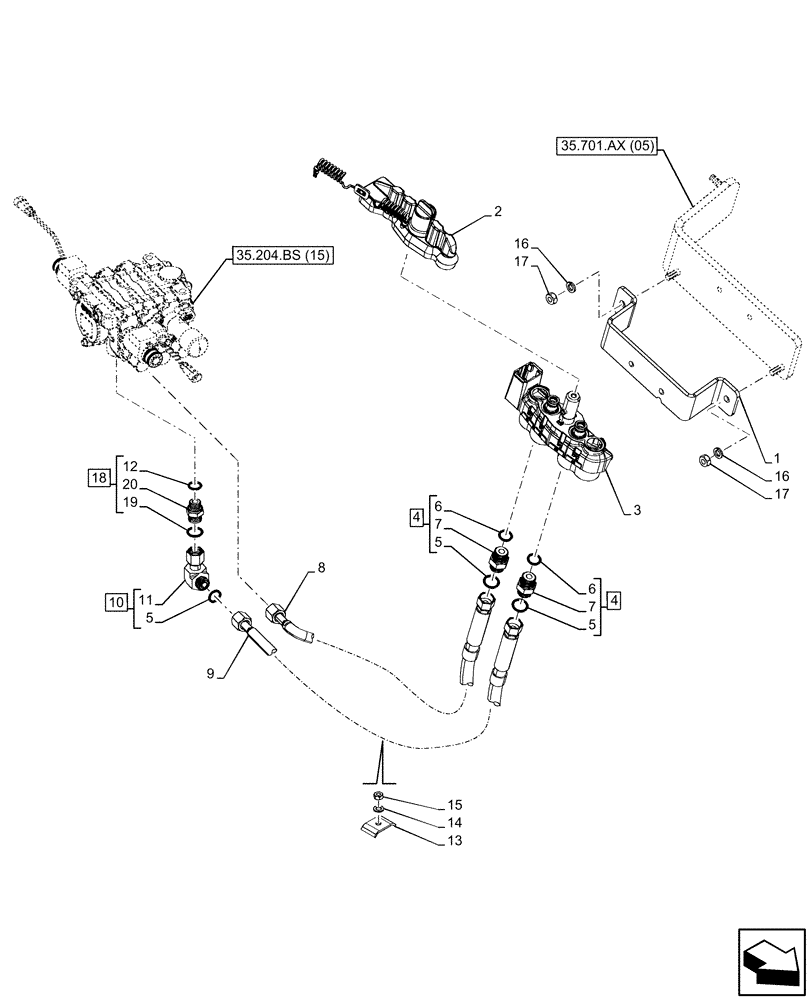

Схема запчастей Case IH MAXXUM 135 - (35.701.AX[06]) - VAR - 758351 - FRONT LOADER HYDRAULIC SYSTEM, NA (35) - HYDRAULIC SYSTEMS
35.701.ax (05)
5
12
16
7
4
17
2
18
16
9
15
17
8
11
10
6
20
13
5
1
7
19
14
3
5
6
4
35.204.bs (15)

Артикул

Название

Примечание

Количество

1

47681086

BRACKET

1шт.

2

47681549

DUST CAP

1шт.

3

47681510

HYD CONNECTOR

ASSY, Incl 2 (Qty 1)

1шт.

4

47681095

HYD CONNECTOR,7/8"-14 x 13/16"-16 ORFS

ASSY, Incl 5 (Qty 1), 6 (Qty 1), 7 (Qty 1)

2шт.

5

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

6

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 4

2шт.

8

47673513

PIPE

Loader Aux

1шт.

9

47729182

PIPE

Loader Aux

1шт.

10

84989383

90 ELBOW,90 Degree, 13/16"-16 ORFS x 13/16"-16 Fem Sw

ASSY, Incl 5 (Qty 1), 11

1шт.

11

NSS

NOT SOLD SEPARAT

Elbow, Incl in 10

1шт.

12

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

13

47057074

CLAMP,48.6mm x 30mm

1шт.

14

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

15

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

16

10516874

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

2шт.

17

11701711

NUT,Hex, M10, Cl 8, ZND

2шт.

18

5185561

HYD CONNECTOR,Straight, M18 x 1.5 UN/UNF, 13/16"-16" ORFS

ASSY, Incl 12, 19, 20

1шт.

19

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

20

NSS

NOT SOLD SEPARAT

Connector, Incl in 18

1шт.

Выбрано товаров: 20
