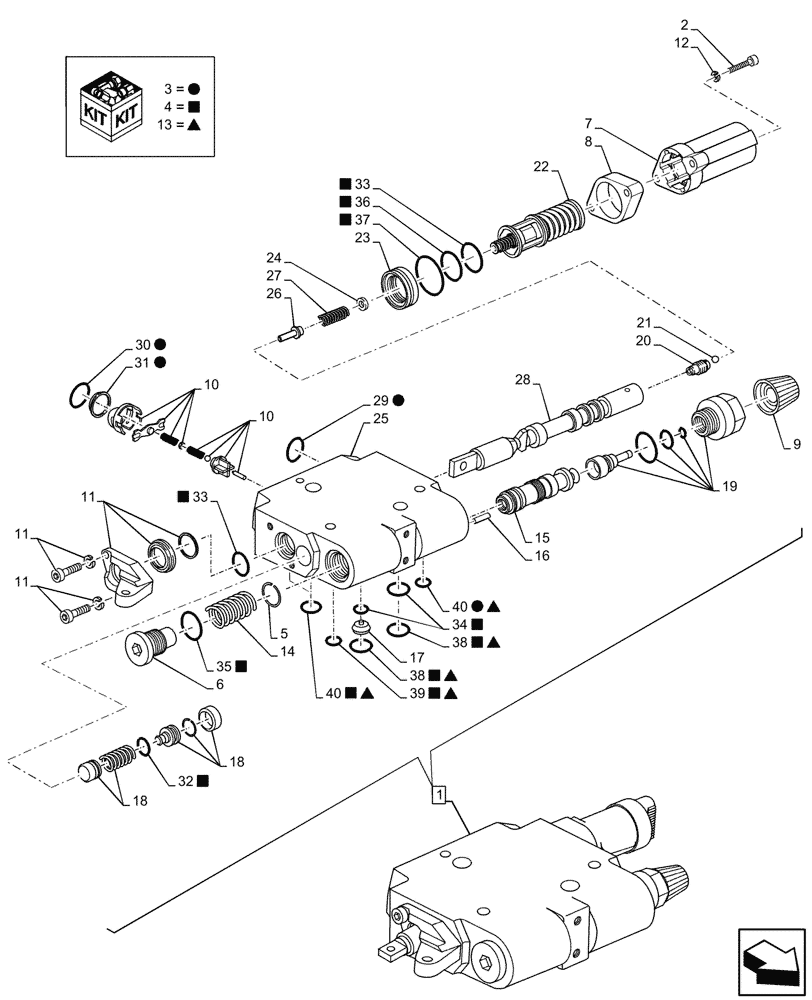

Запчасти Case IH MAXXUM 135 (35.204.BE[24]) - VAR - 390840, 743685, 743741, 758358, 758642 - CONTROL VALVE SECTION, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

87546169

CONTROL VALVE

ASSY, Incl 2 - 41

1шт.

2

87666210

HEX SOC SCREW,M6 x 30mm

2шт.

3

84125422

SEAL KIT

Incl 29 - 31

1шт.

4

87661337

KIT

Incl 29, 30, 32 - 40

1шт.

5

47129463

RETAINER

1шт.

6

47615569

PLUG,M22 x 1.5 x 44.1mm L

1шт.

7

5191784

CAP

1шт.

8

NSS

NOT SOLD SEPARAT

Subassembly, Incl in 1

1шт.

9

87319988

KNOB

1шт.

10

5191720

REPAIR KIT

1шт.

11

47615625

SERVICE KIT

1шт.

12

5191783

SPRING WASHER

2шт.

13

47127019

SEAL

Incl 34 (Qty 2), 38 (Qty 2), 39, 40

1шт.

14

84124585

SPRING

1шт.

15

NSS

NOT SOLD SEPARAT

Valve Spool, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Slotted Spring Pin, Incl in 1

1шт.

17

47127006

VALVE

1шт.

18

87666211

SERVICE KIT

with Threaded Hole Cap

1шт.

18

87376020

SERVICE KIT

1шт.

19

47130767

KIT

1шт.

20

NSS

NOT SOLD SEPARAT

Valve Insert, Incl in 1

1шт.

21

NSS

NOT SOLD SEPARAT

Ball, Incl in 1

1шт.

22

47618828

SERVICE KIT

1шт.

23

NSS

NOT SOLD SEPARAT

Shim, Incl in 1

1шт.

24

NSS

NOT SOLD SEPARAT

Shim, Incl in 1

1шт.

25

NSS

NOT SOLD SEPARAT

Valve Housing, Incl in 1

1шт.

26

NSS

NOT SOLD SEPARAT

Thrust Pin, Incl in 1

1шт.

27

NSS

NOT SOLD SEPARAT

Compression Spring, Incl in 1

1шт.

28

NSS

NOT SOLD SEPARAT

Valve Spool, Incl in 1

1шт.

29

NSS

NOT SOLD SEPARAT

O-ring, 15 x 2,5 HNBR, Incl in 3 and Incl in 4

1шт.

30

NSS

NOT SOLD SEPARAT

O-ring, 17 x 2,5 HNBR, Incl in 3 and Incl in 4

1шт.

31

NSS

NOT SOLD SEPARAT

Washer, Incl in 3

1шт.

32

NSS

NOT SOLD SEPARAT

Support Ring, 11.8 x 15 x 0.8, Incl in 4

1шт.

33

NSS

NOT SOLD SEPARAT

O-ring, 18 x 3 HNBR, Incl in 4

2шт.

34

NSS

NOT SOLD SEPARAT

O-ring, 18 x 2.5 HNBR, Incl in 4

3шт.

35

NSS

NOT SOLD SEPARAT

O-ring, 19.4 x 2.1 HNBR, Incl in 4

1шт.

36

NSS

NOT SOLD SEPARAT

Flat Seal Ring, 31 x 36 x 2, Incl in 4

2шт.

37

NSS

NOT SOLD SEPARAT

O-ring, 26 x 1.5 HNBR, Incl in 4

1шт.

38

NSS

NOT SOLD SEPARAT

Support Ring, 24.5 x 2.15, Incl in 4

4шт.

39

NSS

NOT SOLD SEPARAT

O-ring, 20 x 2.5 HNBR, Incl in 4

1шт.

40

NSS

NOT SOLD SEPARAT

Shim, 11.8 x 0.04, Incl in 4

3шт.
