Запчасти Case IH MAXXUM 135 (35.204.BE[18]) - VAR - 743741 - 3 REMOTE CONTROL VALVES, W/ MECHANICAL ENGAGEMENT, 2, CONFIGURABLE, 1, NOT CONFIGURABLE, COMPONENTS (35) - HYDRAULIC SYSTEMS

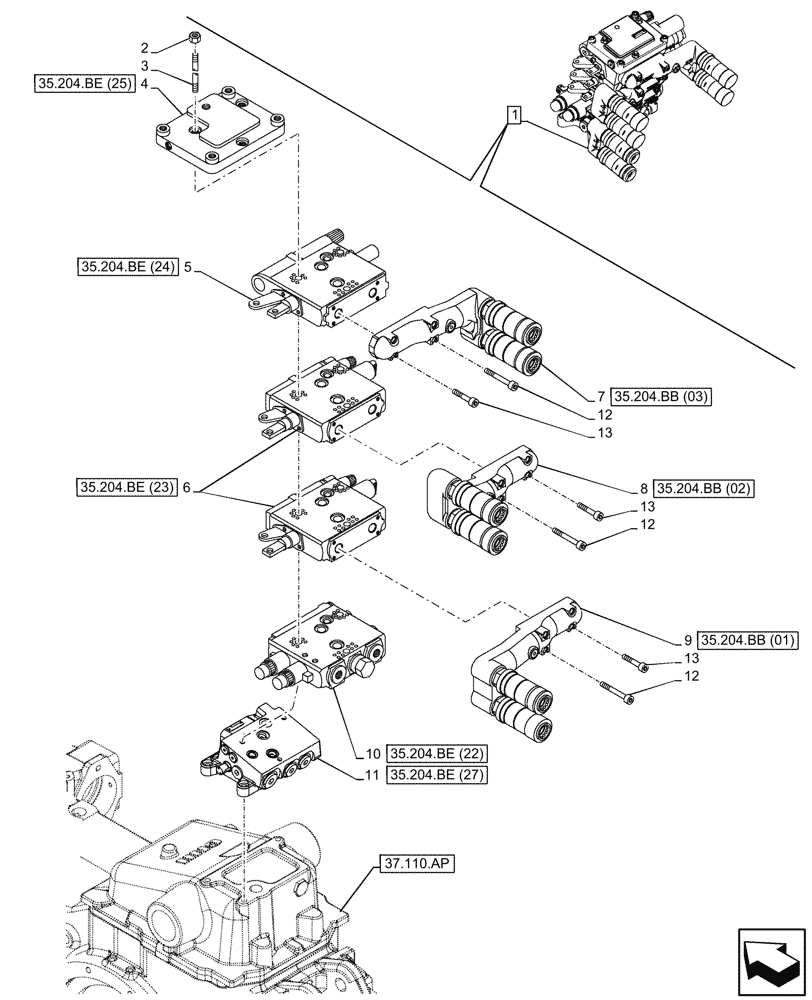

Схема запчастей Case IH MAXXUM 135 - (35.204.BE[18]) - VAR - 743741 - 3 REMOTE CONTROL VALVES, W/ MECHANICAL ENGAGEMENT, 2, CONFIGURABLE, 1, NOT CONFIGURABLE, COMPONENTS (35) - HYDRAULIC SYSTEMS
35.204.be (27)
4
1
13
2
7
5
11
13
12
10
3
12
12
6
13
9
8
35.204.be (23)
35.204.be (22)
35.204.bb (02)
35.204.bb (03)
35.204.bb (01)
35.204.be (24)
37.110.ap
35.204.be (25)

Артикул

Название

Примечание

Количество

1

47533217

REMOTE CONTROL VALVE

ASSY, Incl 2 - 13

1шт.

2

5195169

NUT,M8

3шт.

3

47123183

STUD,M8

3шт.

4

5192188

BODY

ASSY

1шт.

5

87546169

CONTROL VALVE

ASSY

1шт.

5

87546169R

REMAN-HYD VALVE

1шт.

5

87546169C

CORE-VALVE HYD

Return Number

1шт.

6

87328572

HYD VALVE SECTION

ASSY

2шт.

6

87328572R

REMAN-HYD VALVE

2шт.

6

87328572C

CORE-VALVE HYD

Return Number

2шт.

7

47532954

MANIFOLD

Group 3, ASSY

1шт.

8

47532950

MANIFOLD

Group 2, ASSY

1шт.

9

47532947

MANIFOLD

Group 1, ASSY

1шт.

10

84175671

VALVE SECTION

ASSY

1шт.

10

84175671R

REMAN-HYD VALVE

1шт.

10

84175671C

CORE-VALVE HYD

Return Number

1шт.

11

5192186

DISTRIBUTOR

ASSY

1шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

M6 x 50mm

6шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

M6 x 35mm

6шт.

Выбрано товаров: 19
