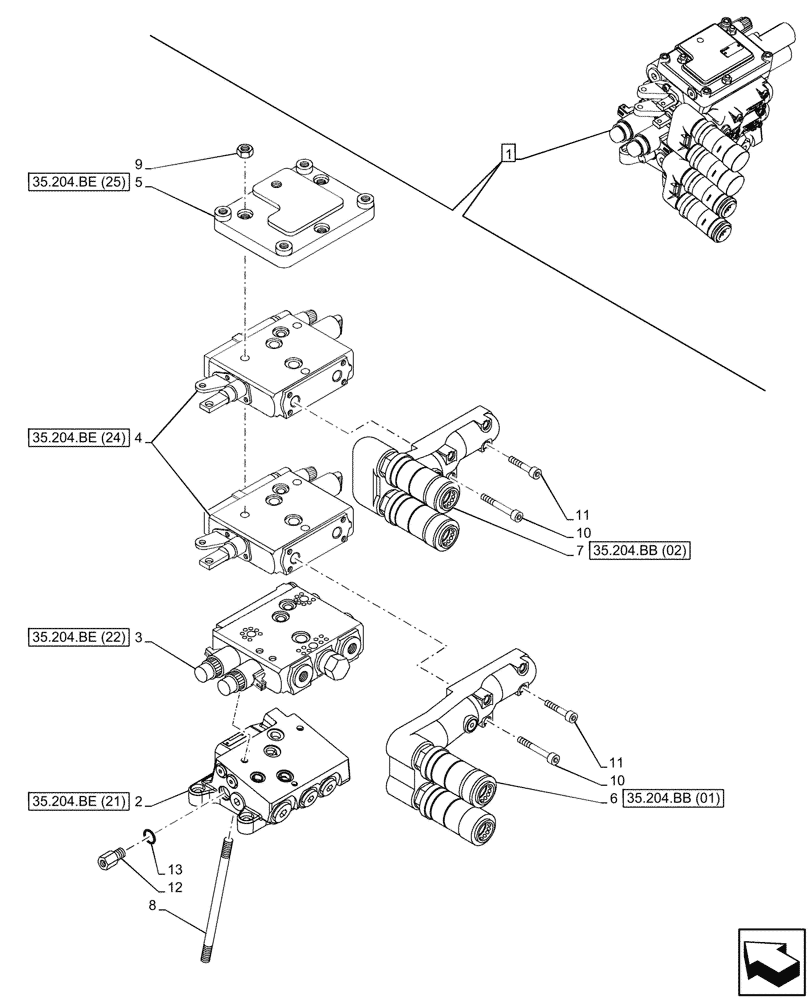

Запчасти Case IH MAXXUM 135 (35.204.BE[12]) - VAR - 390840 - 2 REMOTE CONTROL VALVES, W/ MECHANICAL ENGAGEMENT (35) - HYDRAULIC SYSTEMS

1

47662358

DISTRIBUTOR

ASSY, Incl 2 - 13

1шт.

2

84142195

HYD VALVE SECTION

ASSY

1шт.

3

84175671

VALVE SECTION

ASSY

1шт.

3

84175671R

REMAN-HYD VALVE

1шт.

3

84175671C

CORE-VALVE HYD

Return Number

1шт.

4

87546169

CONTROL VALVE

ASSY

2шт.

4

87546169R

REMAN-HYD VALVE

2шт.

4

87546169C

CORE-VALVE HYD

Return Number

2шт.

5

5192188

BODY

ASSY

1шт.

6

47532947

MANIFOLD

Group 1, ASSY

1шт.

7

47532950

MANIFOLD

Group 2, ASSY

1шт.

8

5195168

TIE-ROD,M8

3шт.

9

5195169

NUT,M8

3шт.

10

47129475

HEX SOC SCREW,M6 x 50mm

M6 x 50mm

4шт.

11

47129474

HEX SOC SCREW,M6 x 35mm

M6 x 35mm

4шт.

12

5191704

CHECK VALVE

1шт.

13

5191705

O-RING,9.4mm D x 2.1mm Thk

9.4 x 2.1mm

1шт.
