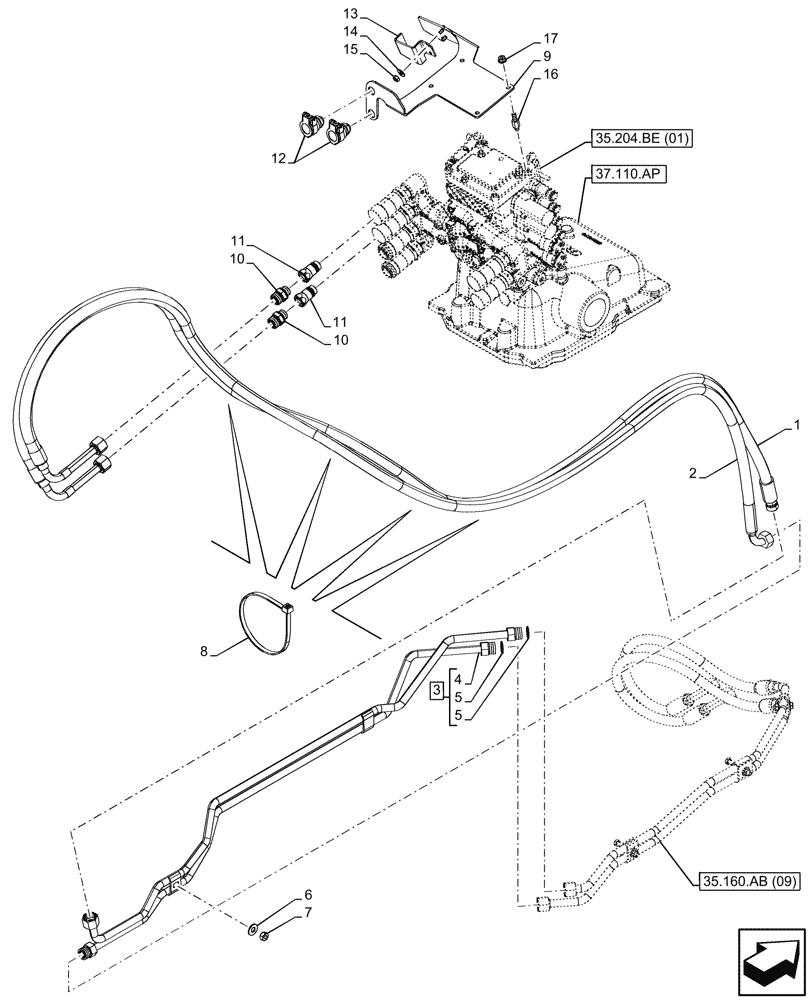

Запчасти Case IH MAXXUM 135 (35.160.AB[11]) - VAR - 758582 - REMOTE CONTROL VALVE, W/ MECHANICAL ENGAGEMENT, LINE (35) - HYDRAULIC SYSTEMS

1

47669042

PIPE

to Front Coupler on Rear Remote Control Valve

1шт.

2

47669041

PIPE

to Front Coupler on Rear Remote Control Valve

1шт.

3

47678946

PIPE

from Rear Remote Control Valve to Front Couplers, ASSY, Incl 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

Pipe, Incl in 3

1шт.

5

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

6

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

7

16100814

NUT,M8, Cl 8, DAC

1шт.

8

14560287

CABLE TIE,207.00mm L

4шт.

9

47669043

BRACKET

1шт.

10

83972881

COUPLING

2шт.

11

5185524

HYD CONNECTOR

2шт.

12

47057077

SOCKET

2шт.

13

47831323

CLAMP

1шт.

14

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

2шт.

15

15896211

NUT,M6, Cl 8

2шт.

16

47810931

SPACER

4шт.

17

14059311

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.
