Запчасти Case IH MAXXUM 135 (31.114.AI[01]) - VAR - 390802, 758440, 758584 - PTO CLUTCH (540/1000 RPM) (31) - IMPLEMENT POWER TAKE OFF

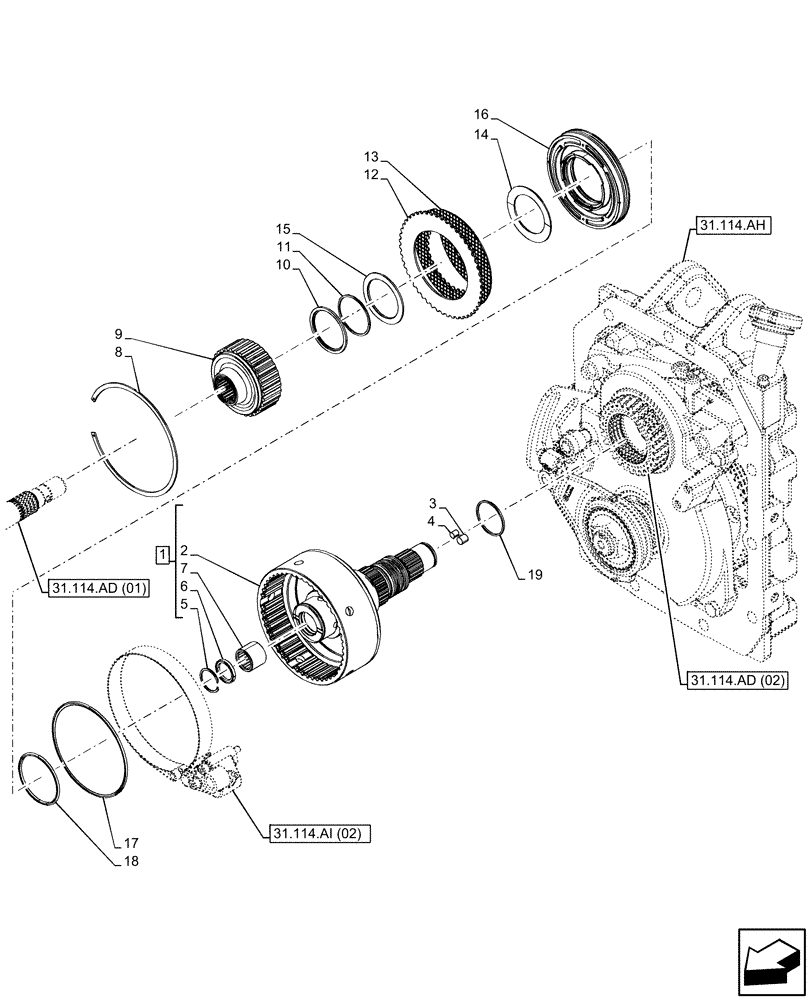

Схема запчастей Case IH MAXXUM 135 - (31.114.AI[01]) - VAR - 390802, 758440, 758584 - PTO CLUTCH (540/1000 RPM) (31) - IMPLEMENT POWER TAKE OFF
31.114.ai (02)
6
4
13
8
2
1
17
19
12
10
7
15
11
14
3
16
5
9
18
31.114.ad (02)
31.114.ad (01)
31.114.ah

Артикул

Название

Примечание

Количество

1

87305531

MAIN SHAFT,26T, 18T, 220mm L

ASSY, Incl 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

3

14536590

PLUG,10.00mm Dia x 19.80mm L

1шт.

4

14536490

PLUG,8.00mm Dia x 15.70mm L

1шт.

5

5182717

SNAP RING,1.5mm Thk

1шт.

6

5182702

GASKET,25mm ID x 33mm OD x 4mm Thk

1шт.

7

5138952

NEEDLE BEARING,Needle, 25mm ID x 32mm OD x 26mm W

1шт.

8

5162251

CIRCLIP,142.5mm ID

1шт.

9

5198672

HUB,Z32

1шт.

10

5191304

RETAINER CUP,55mm ID x 66mm OD x 3mm Thk

1шт.

11

5191305

CIRCLIP,54mm ID

1шт.

12

5173295

CLUTCH DISC,99mm ID x 152.6mm OD x 2.2mm Thk

6шт.

13

5163844

CLUTCH DRIVING PLATE,99mm ID x 140mm OD x 1.7mm Thk

6шт.

14

5168346

BELLEVILLE WASHER,56mm ID x 80mm OD x 3.3mm Thk

8шт.

15

5182696

PISTON RING,56mm ID x 72.99mm OD x 3mm Thk

1шт.

16

5198547

PISTON

1шт.

17

5143775

SEAL,128.55mm ID x 136.06mm OD x 3.2mm Thk

1шт.

18

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

1шт.

19

5175983

SEALING RING,46mm ID

3шт.

Выбрано товаров: 19
