Запчасти Case IH MAXXUM 135 (31.104.AR[20]) - VAR - 759375, 759377 - PTO CLUTCH, CONTROL VALVE, COMPONENTS (30KPH) (16X16) (31) - IMPLEMENT POWER TAKE OFF

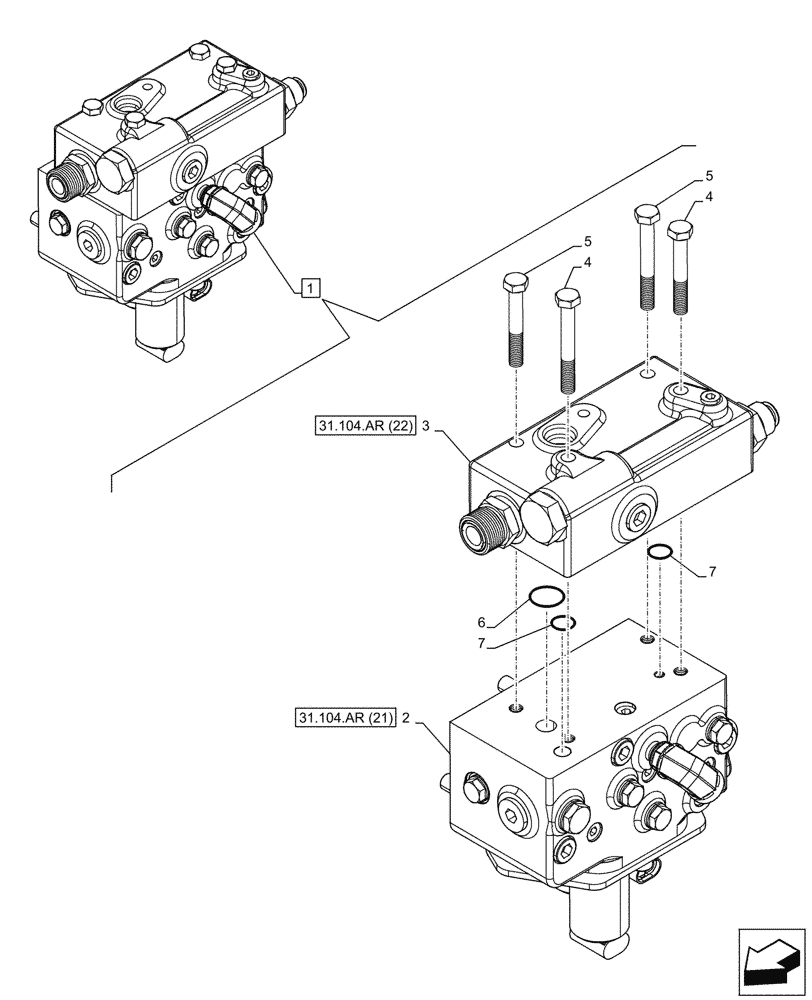

Схема запчастей Case IH MAXXUM 135 - (31.104.AR[20]) - VAR - 759375, 759377 - PTO CLUTCH, CONTROL VALVE, COMPONENTS (30KPH) (16X16) (31) - IMPLEMENT POWER TAKE OFF
31.104.ar (22)
4
2
7
5
1
7
3
6
5
4
31.104.ar (21)

Артикул

Название

Примечание

Количество

1

48043446

HYDRAULIC MANIFOLD

ASSY, Incl 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

ASSY, Directional Control Valve, Incl in 1

1шт.

3

47618918

VALVE, PRESSURE CONT

ASSY

1шт.

4

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

2шт.

5

16044521

SCREW,Hex, M8 x 65mm, Cl 8.8

2шт.

6

14457381

O-RING,17.12mm ID x 2.62" Width

1шт.

7

14456980

O-RING,10.77mm ID x 2.62mm

2шт.

Выбрано товаров: 7
