Запчасти Case IH MAXXUM 135 (31.104.AR[07]) - VAR - 758414, 758416 - PTO CLUTCH, DIRECTIONAL CONTROL VALVE (40 KPH, 16X16, W/AUTOSHIFT, W/CREEPER) (31) - IMPLEMENT POWER TAKE OFF

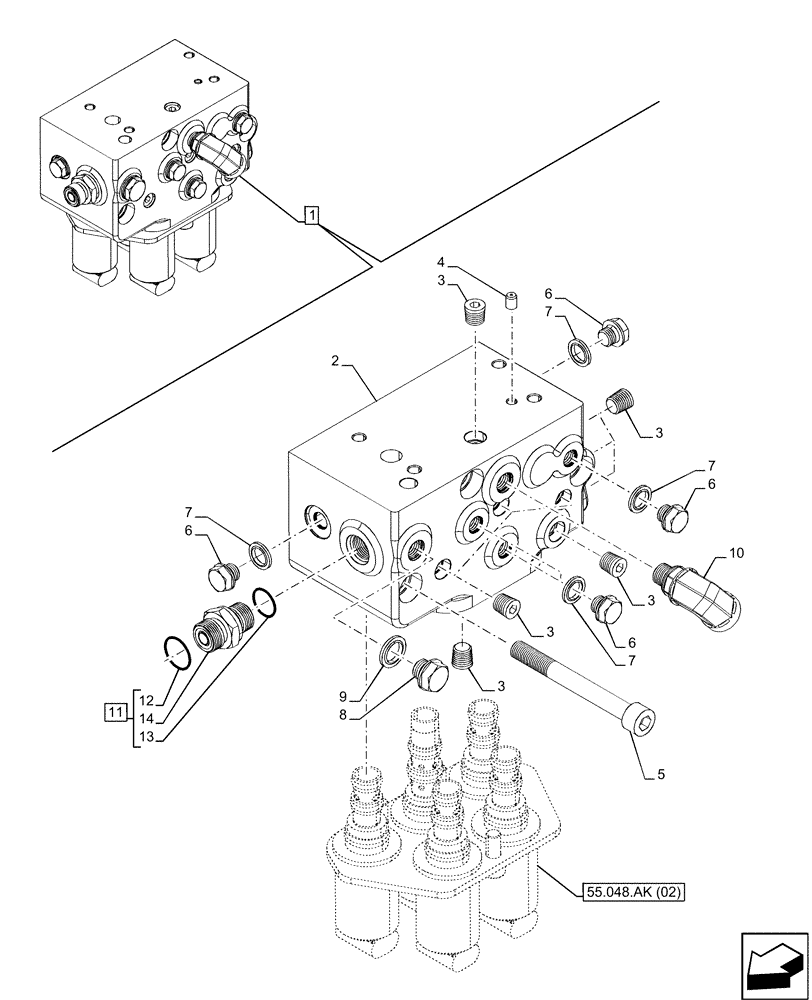

Схема запчастей Case IH MAXXUM 135 - (31.104.AR[07]) - VAR - 758414, 758416 - PTO CLUTCH, DIRECTIONAL CONTROL VALVE (40 KPH, 16X16, W/AUTOSHIFT, W/CREEPER) (31) - IMPLEMENT POWER TAKE OFF
55.048.ak (02)
4
6
9
7
7
8
3
6
2
3
3
7
10
7
12
11
5
14
3
1
6
3
6
13

Артикул

Название

Примечание

Количество

1

5195592

CONTROL VALVE

ASSY, Incl 2 - 14

1шт.

See also Figure 55.048.AK (02)

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

3

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

9шт.

4

5171508

RESTRICTOR

1шт.

5

14302821

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

6

87535222

PLUG,Hex, M10 x 1 x 13mm

5шт.

7

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

5шт.

8

47488502

PLUG,Hex, M12 x 1.5

1шт.

9

87356828

SEALING WASHER,12.00mm ID x 20.00mm OD x 1.50mm

1шт.

10

87537887

90 ELBOW

1шт.

11

5192374

HYD CONNECTOR,11/16-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 12 - 14

1шт.

12

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

13

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

14

NSS

NOT SOLD SEPARAT

Connector, Incl in 11

1шт.

Выбрано товаров: 15
