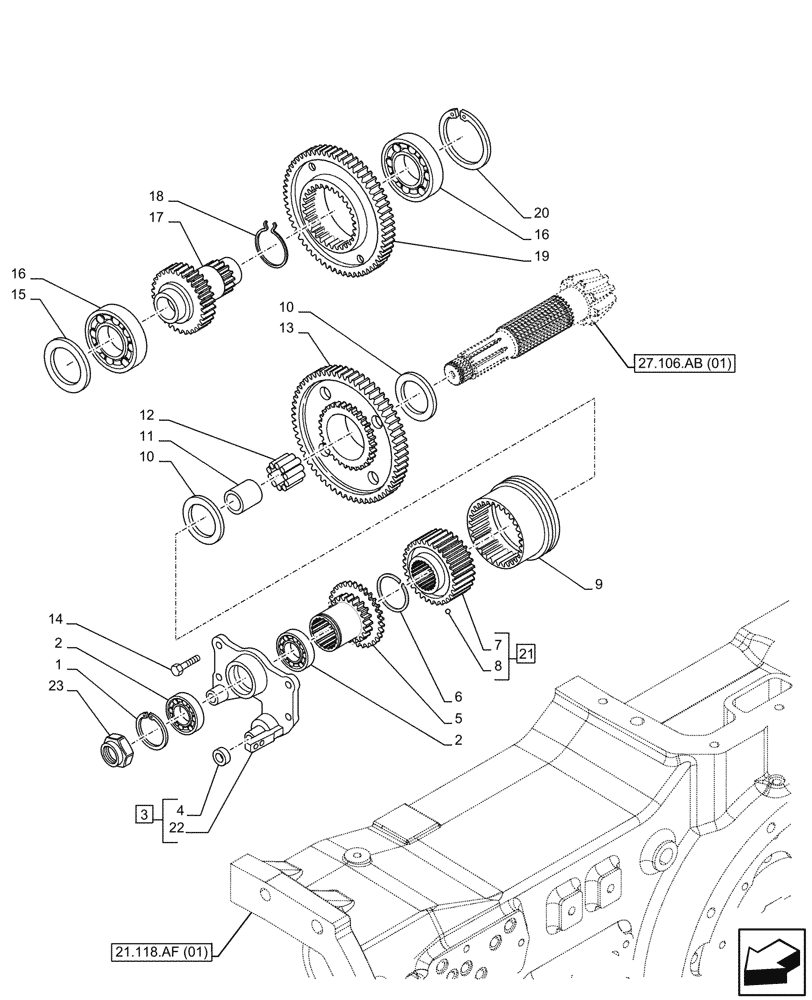

Запчасти Case IH MAXXUM 135 (27.106.AA[01]) - VAR - 758414, 758416, 759379 - REDUCTION, UNIT, GEAR (27) - REAR AXLE SYSTEM

1

11069576

SNAP RING,M55, Ext

1шт.

2

28042510

BALL BEARING,55mm x 90mm x 18mm

2шт.

3

47126844

COVER

ASSY, Incl 4, 22

1шт.

4

47126786

BUSHING,12.5mm ID x 15mm OD x 7.8mm L

2шт.

5

5198173

GEAR

Z 29, Z 20

1шт.

6

13398876

SNAP RING,M38, Int

1шт.

7

20063460

BALL,7.14mm OD, Gr 100

2шт.

8

5198398

GEAR

Z 29

1шт.

9

47125132

SLEEVE,29T

1шт.

10

5194534

THRUST WASHER

2шт.

11

5194536

RING RACE

1шт.

12

5194535

NEEDLE BEARING CAGE,55mm ID x 60mm OD x 27mm L

1шт.

13

5194541

GEAR

Z 60

1шт.

14

15540521

SCREW,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

15

5198403

SPACER

1шт.

16

20972850

BALL BEARING,45 mm ID x 85 mm OD x 19 mm

2шт.

17

5198395

SHAFT

1шт.

18

5192305

SNAP RING,M80.6, Ext

1шт.

19

5198393

GEAR

Z 57

1шт.

20

11062176

CIRCLIP,M85, Int

1шт.

21

5198461

SLEEVE

ASSY, Incl 7, 8

1шт.

22

NSS

NOT SOLD SEPARAT

Cover, Incl in 3

1шт.

23

5147930

RING NUT,M45 x 1.5

1шт.
