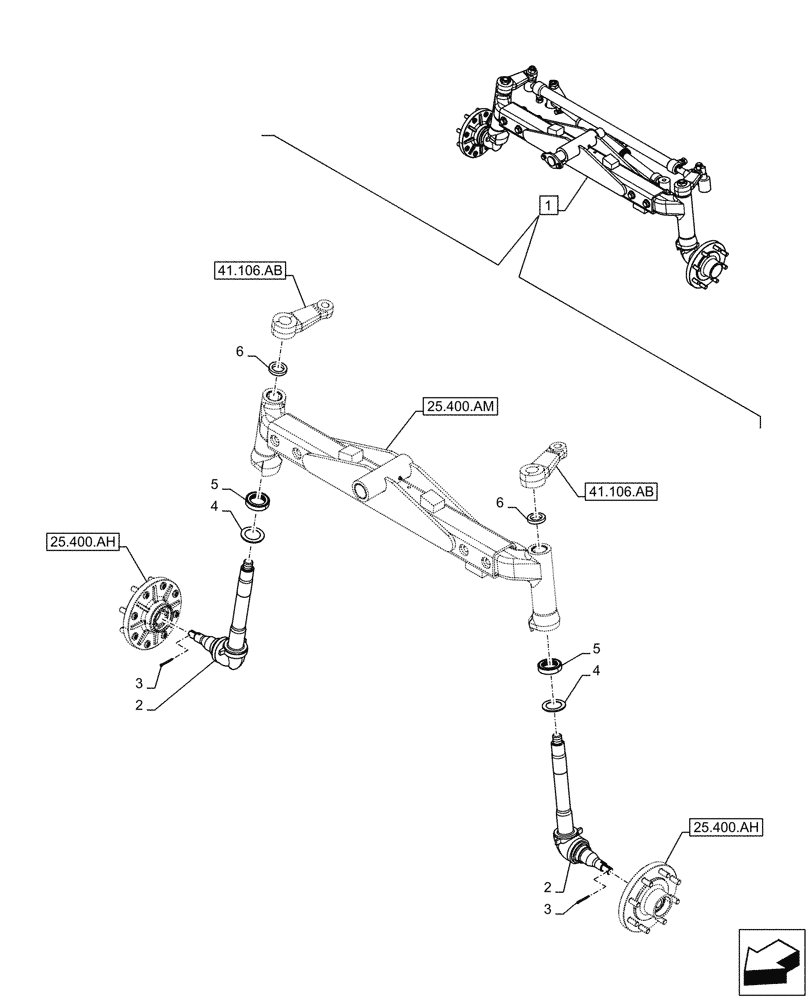

Запчасти Case IH MAXXUM 135 (25.400.AU) - VAR - 759381 - 2WD FRONT AXLE, SPINDLE (25) - FRONT AXLE SYSTEM

1

48058524

FRONT AXLE

ASSY, Incl 2 - 6

1шт.

See also 2WD Front Axle Components in Figure 25.400.AD, 25.400.AH, 25.400.AL, 25.400.AM, 41.106.AB, 41.106.AC (01), 41.216.AB (01)

1шт.

2

87316429

SPINDLE

2шт.

3

72054S8

COTTER PIN,5/32" x 1 1/4"

2шт.

4

81864058

SPACER

2шт.

5

138712

THRUST BEARING,50.95mm ID x 74.87mm OD x 16.13mm W

2шт.

6

83918236

SEALING RING,38.1mm ID x 57.1mm OD x 9.98mm Thk

2шт.
