Запчасти Case IH MAXXUM 135 (25.122.AD[02]) - VAR - 758422, 758423, 758427, 758428 - FRONT AXLE, SUSPENDED, CYLINDER, LINE (25) - FRONT AXLE SYSTEM

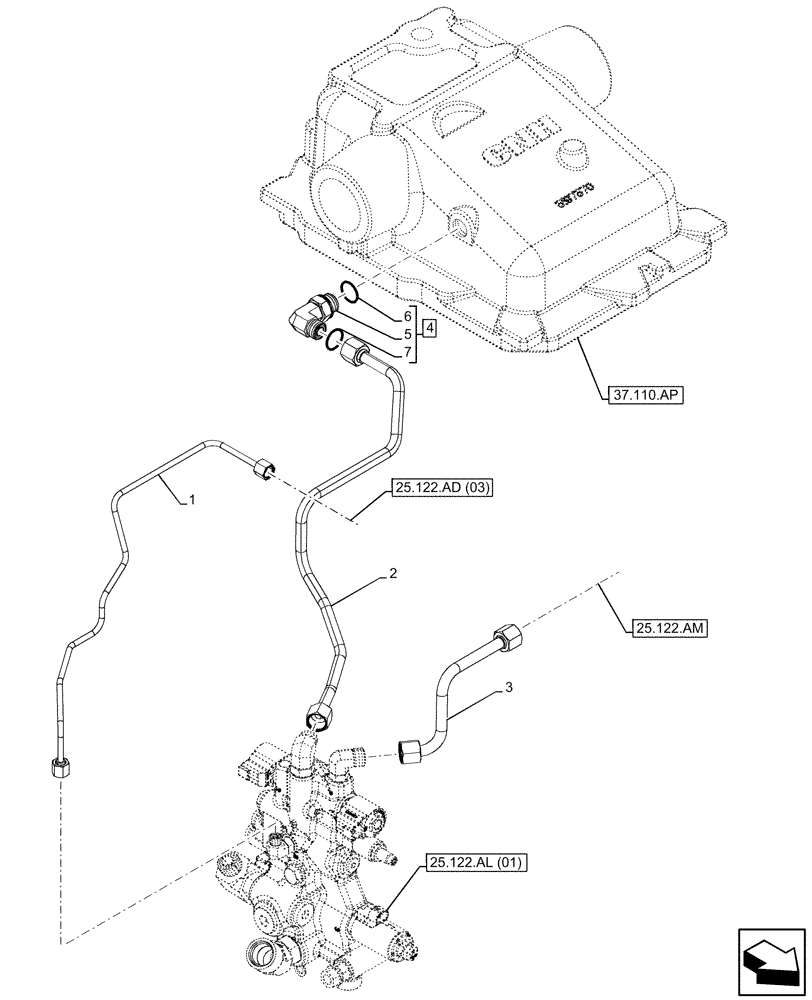

Схема запчастей Case IH MAXXUM 135 - (25.122.AD[02]) - VAR - 758422, 758423, 758427, 758428 - FRONT AXLE, SUSPENDED, CYLINDER, LINE (25) - FRONT AXLE SYSTEM
37.110.ap
1
2
4
6
3
7
5
25.122.ad (03)
25.122.al (01)
25.122.am

Артикул

Название

Примечание

Количество

1

47509708

PIPE

From Hyd Pump

1шт.

2

47744421

PIPE

Return, Axle Suspension Valve

1шт.

3

47866157

PIPE

Delivery, Axle Suspension Valve

1шт.

4

87670188

HYD CONNECTOR

ASSY, Incl 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

Elbow, Incl in 4

1шт.

6

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

7

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

Выбрано товаров: 7
