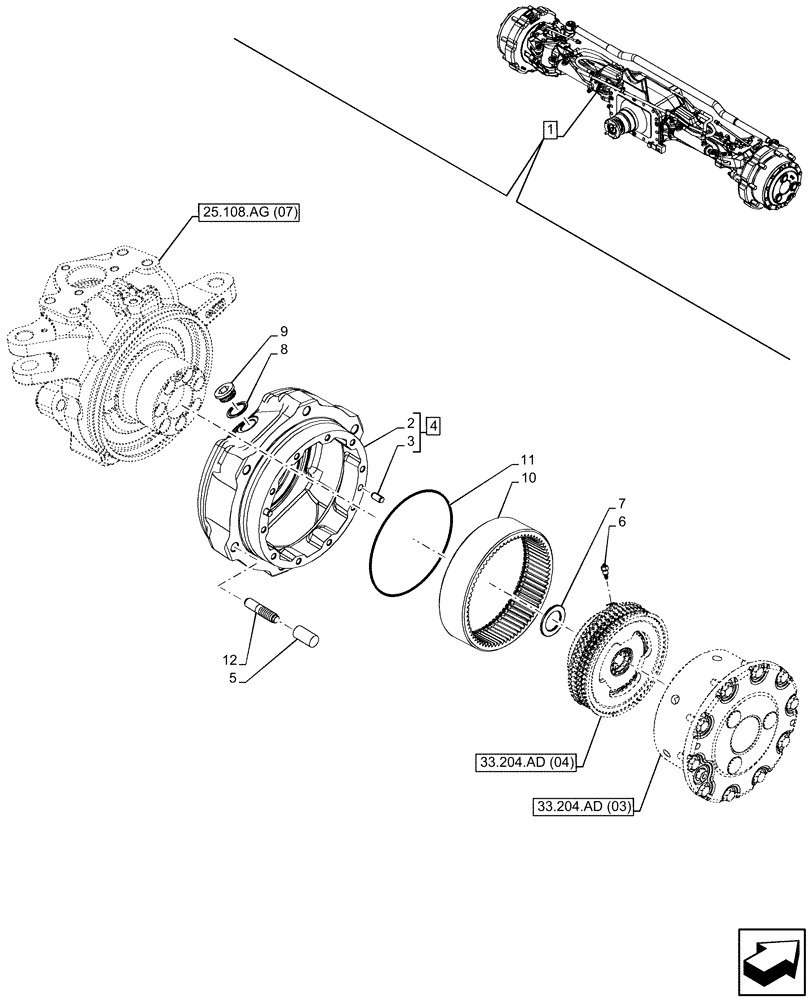

Запчасти Case IH MAXXUM 135 (25.108.AN[07]) - VAR - 758428 - SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, STRG SENSOR & BRAKES, STEERING KNUCKLE (25) - FRONT AXLE SYSTEM

1

87745927

LIVE FRONT AXLE

ASSY, Incl 2 - 12

1шт.

See also Axle Components in Figure 25.100.AA (07), 25.100.AD (07), 25.108.AA (07), 25.108.AB (09), 25.108.AG (07), 33.204.AD (03), 33.204.AD (04), 41.216.AN (09), 41.216.AV (09), 55.047.AA (07)

1шт.

2

NSS

NOT SOLD SEPARAT

Hub, Incl in 2

1шт.

3

4985063

DOWEL,12mm OD x 20mm L

12mm x 20mm

2шт.

4

47698439

HUB

ASSY, Incl 2, 3

1шт.

5

87671955

CAP,15.50mm ID x 22.00mm OD x 40.00mm

8шт.

6

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

1шт.

7

87525785

RING

1шт.

8

87380329

SEALING WASHER,28.00mm ID x 38.00mm OD x 1.50mm

1шт.

9

10278340

PLUG,M28 x 1.5 x 11, Brass

1шт.

10

87332016

RING GEAR

1шт.

11

14469481

O-RING,10.984" ID x 11.262" OD x 0.139"

1шт.

12

87618916

STUD

8шт.
