Запчасти Case IH MAXXUM 135 (25.108.AA[09]) - VAR - 392196, 758417, 758418, 758419 - FRONT AXLE, W/ LIMITED SLIP DIFFERENTIAL, SHAFT (25) - FRONT AXLE SYSTEM

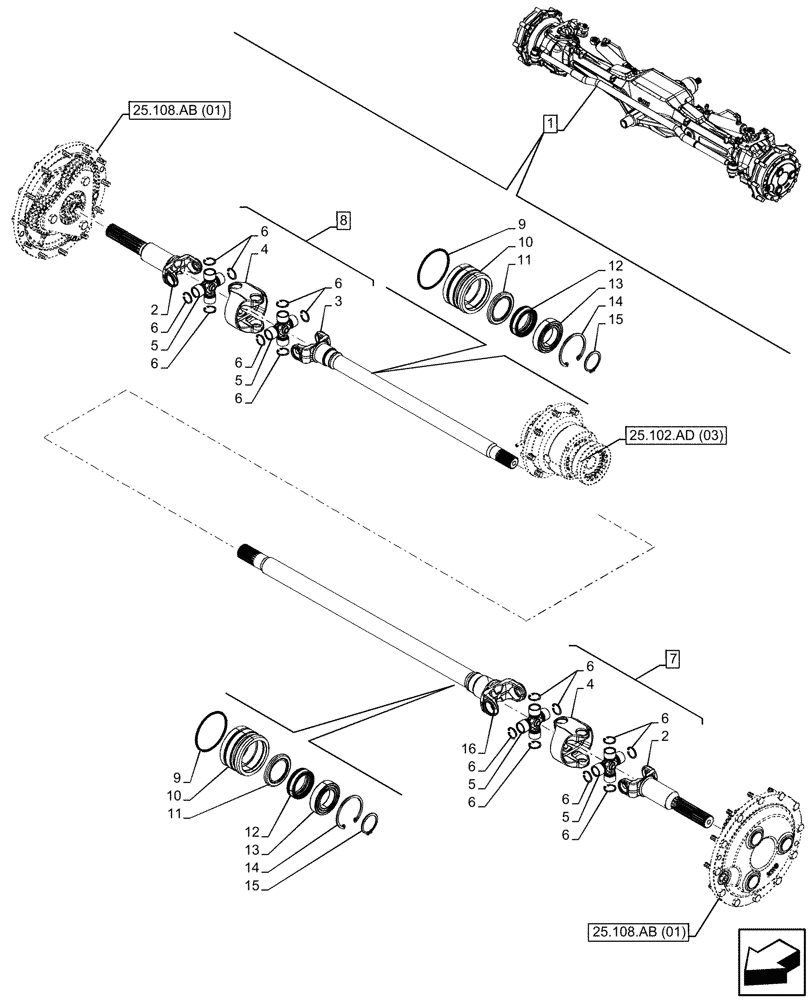

Схема запчастей Case IH MAXXUM 135 - (25.108.AA[09]) - VAR - 392196, 758417, 758418, 758419 - FRONT AXLE, W/ LIMITED SLIP DIFFERENTIAL, SHAFT (25) - FRONT AXLE SYSTEM
25.102.ad (03)
15
8
14
16
1
6
6
13
6
15
4
9
11
3
5
5
6
6
13
10
9
6
5
7
6
11
12
2
6
6
14
10
6
5
4
12
6
2
6
25.108.ab (01)
25.108.ab (01)

Артикул

Название

Примечание

Количество

1

84180939

LIVE FRONT AXLE

ASSY, Incl 2 - 16

1шт.

See also Axle Components in Figure 25.100.AA (09), 25.100.AD (09), 25.108.AB (12), 25.108.AG (09), 41.216.AN (12)

1шт.

2

84201642

SHORT SHAFT FORK

1шт.

3

87579231

AXLE-SHAFT, ARTICULA,Yoke, 671mm L

LH

1шт.

4

87361042

YOKE

1шт.

5

5191547

U-JOINT SPIDER

2шт.

6

5191548

CIRCLIP

8шт.

7

84194809

SHAFT

ASSY, RH, Incl 2 (Qty 1), 4 (Qty 1), 5 (Qty 2), 6 (Qty 8), 16

1шт.

8

84194816

SHAFT

ASSY, LH, Incl 2 (Qty 1), 3, 4 (Qty 1), 5 (Qty 2), 6 (Qty 8)

1шт.

9

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

2шт.

10

84197406

BUSHING

2шт.

11

5109311

SEAL PROTECTION,45.2mm ID x 68mm OD x 1mm Thk

2шт.

12

84166622

SEAL,43.1mm ID x 60mm OD x 17.2mm Thk

2шт.

13

28042480

BALL BEARING,40.00mm x 68.00mm x 15.00mm

2шт.

14

11061376

SNAP RING,M68, Int

2шт.

15

11068876

SNAP RING,M40, Ext

2шт.

16

87579229

AXLE-SHAFT, ARTICULA,Yoke, 732.50mm L

RH

1шт.

Выбрано товаров: 17
