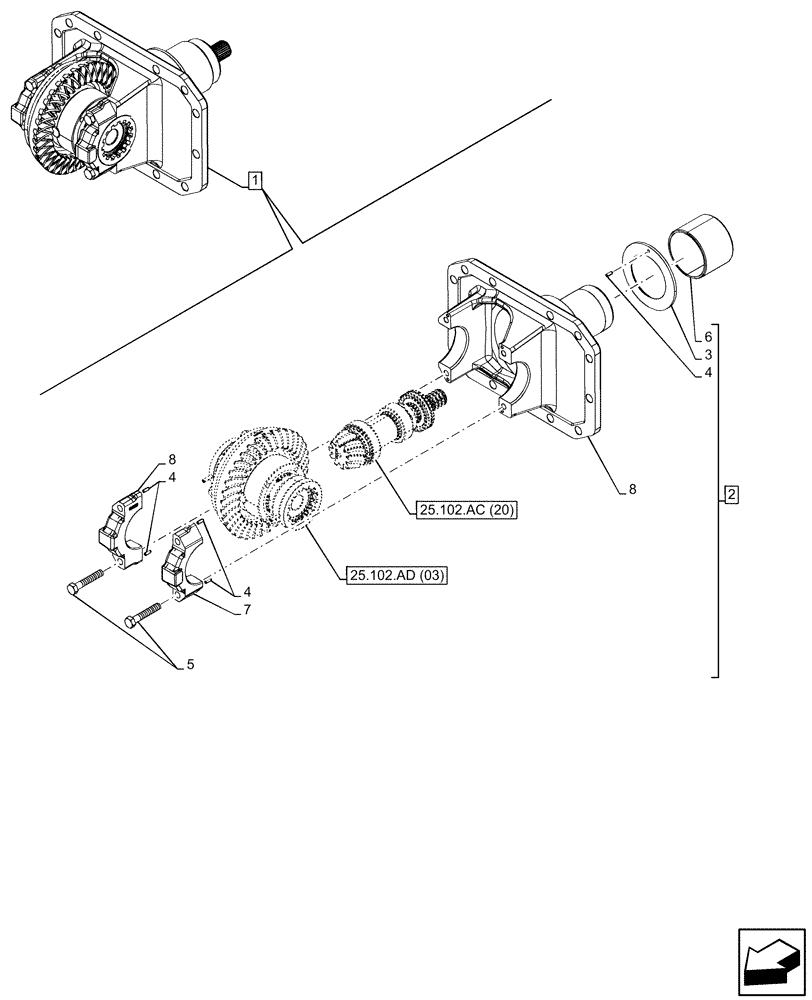

Запчасти Case IH MAXXUM 135 (25.102.AC[19]) - VAR - 392196, 758417, 758418, 758419 - FRONT AXLE, W/ LIMITED SLIP DIFFERENTIAL, DIFFERENTIAL, CARRIER (25) - FRONT AXLE SYSTEM

1

87530113

DIFFERENTIAL ASSY

ASSY, Incl 2 - 8

1шт.

See also Differential Components in Figure 25.102.AC (20), 25.102.AC (21), 25.102.AC (22), 25.102.AD (03)

1шт.

2

87523104

SUPPORT

ASSY, Incl 3 - 8

1шт.

3

5136119

RING,90.3mm ID x 136mm OD x 5mm Thk

1шт.

4

4966244

PIN,5mm OD x 15mm L

1шт.

5

14275334

BOLT,Lock, Hex, M12 x 1.25 x 70mm, Cl 10.9

4шт.

6

5136120

BUSHING,90mm ID x 99.05mm OD x 72mm L

1шт.

7

NSS

NOT SOLD SEPARAT

Cover, Incl in 2

2шт.

8

NSS

NOT SOLD SEPARAT

Support, Incl in 2

1шт.
