Запчасти Case IH MAXXUM 135 (25.100.AA[09]) - VAR - 392196, 758417, 758418, 758419 - FRONT AXLE, W/ LIMITED SLIP DIFFERENTIAL (25) - FRONT AXLE SYSTEM

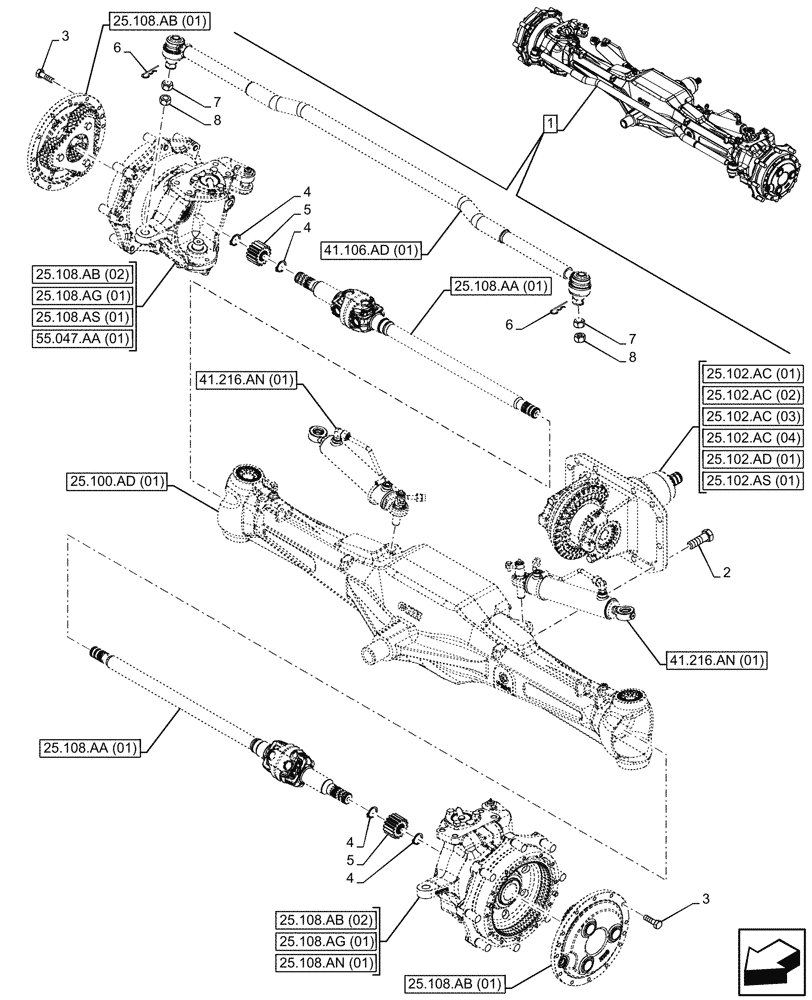

Схема запчастей Case IH MAXXUM 135 - (25.100.AA[09]) - VAR - 392196, 758417, 758418, 758419 - FRONT AXLE, W/ LIMITED SLIP DIFFERENTIAL (25) - FRONT AXLE SYSTEM
25.108.ab (02)
4
4
4
1
7
6
5
7
6
8
8
4
5
2
3
3
25.108.ab (01)
25.108.ab (01)
25.108.aa (01)
25.108.aa (01)
25.108.ag (01)
25.108.ag (01)
25.100.ad (01)
41.216.an (01)
41.216.an (01)
25.102.as (01)
55.047.aa (01)
25.102.ac (03)
25.102.ac (01)
25.108.an (01)
25.108.as (01)
41.106.ad (01)
25.102.ac (02)
25.102.ad (01)
25.102.ac (04)
25.108.ab (02)

Артикул

Название

Примечание

Количество

1

84180939

LIVE FRONT AXLE

ASSY, Incl 2 - 8

1шт.

See also Axle Components in Figure 25.100.AD (09), 25.108.AA (09), 25.108.AB (12), 25.108.AG (09), 41.216.AN (12)

1шт.

2

16217734

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd

10шт.

3

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

24шт.

4

5140018

SNAP RING,M30, Ext

4шт.

5

5145501

SUN GEAR,16T

2шт.

6

10733804

COTTER PIN,4.00mm Dia x 16.00mm

2шт.

Use only for Ehrenreich Ball

1шт.

7

12576014

NUT,Prevailing Torque, M18, 1.5mm Pitch, 16.00mm High, Cl 04, DAC

2шт.

Use for all Ball Except for Ehrenreich Ball

1шт.

8

10724614

SLOTTED NUT,Thin Slotted, M18, 1.5mm Pitch, 15.00mm High, R80, DAC

2шт.

Use only for Ehrenreich Ball

1шт.

Выбрано товаров: 12
