Запчасти Case IH MAXXUM 135 (23.314.AH[01]) - VAR - 390409, 392196, 758417, 758420, 758425 - 4WD FRONT AXLE, DRIVE SHAFT (23) - FOUR WHEEL DRIVE SYSTEM

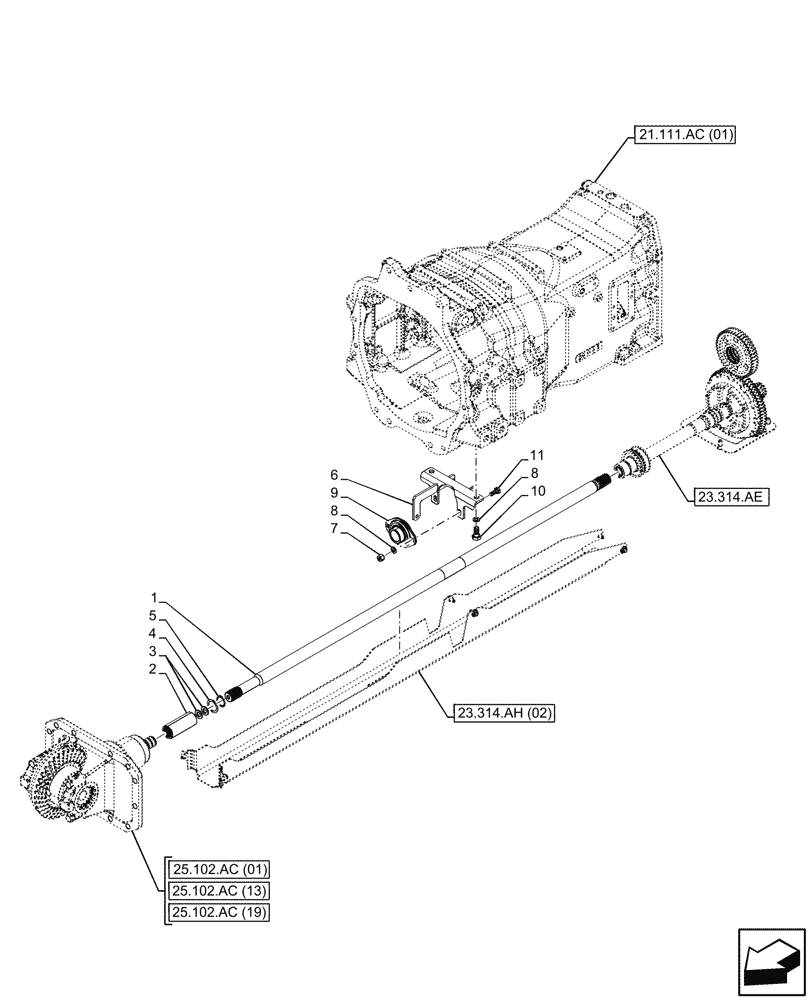

Схема запчастей Case IH MAXXUM 135 - (23.314.AH[01]) - VAR - 390409, 392196, 758417, 758420, 758425 - 4WD FRONT AXLE, DRIVE SHAFT (23) - FOUR WHEEL DRIVE SYSTEM
25.102.ac (13)
10
6
4
2
7
1
9
8
8
5
11
3
21.111.ac (01)
25.102.ac (01)
23.314.ae
23.314.ah (02)
25.102.ac (19)

Артикул

Название

Примечание

Количество

1

47508473

SHAFT

1шт.

2

5196462

SPLINED COUPLING,14T

1шт.

3

11191074

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 2.6mm Thk

2шт.

4

5143583

SHIM,31.7mm ID x 42mm OD x 1mm Thk

1шт.

4

5143589

SHIM,31.7mm ID x 42mm OD x 2.5mm Thk

1шт.

4

5143592

WASHER,31.70mm ID x 42.00mm OD x 3.30mm T

1шт.

4

5143593

WASHER,31.7mm ID x 42mm OD x 3.7mm Thk

1шт.

4

5143595

WASHER,31.7mm ID x 42mm OD x 4.3mm Thk

1шт.

4

5143585

SHIM,31.7mm ID x 42mm OD x 1.5mm Thk

1шт.

4

5143594

WASHER,31.7mm ID x 42mm OD x 4mm Thk

1шт.

4

5143591

SHIM,31.7mm ID x 42mm OD x 3mm Thk

1шт.

4

5143590

SHIM,31.7mm ID x 42mm OD x 2.8mm Thk

1шт.

4

5143586

SHIM,32mm ID x 42mm OD x 1.8mm Thk

1шт.

4

5143588

SHIM,31.7mm ID x 42mm OD x 2.2mm Thk

1шт.

4

5143587

SHIM,31.7mm ID x 42mm OD x 2mm Thk

1шт.

4

5143584

SHIM,31.7mm ID x 42mm OD x 1.2mm Thk

1шт.

5

11067876

SNAP RING,M30, Ext

2шт.

6

47817138

SUPPORT

1шт.

7

12574511

LOCK NUT,M10 x 1.25, Cl 8

2шт.

8

11198574

BELLEVILLE WASHER,Belleville, M10.5

4шт.

9

5166640

BEARING ASSY

1шт.

10

11422324

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8

2шт.

11

15970721

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 23
