Запчасти Case IH MAXXUM 135 (23.202.AD) - VAR - 392195, 392204, 743764, 743766, 758413, 758414, 758415, 758416, 758581 - FRONT-WHEEL DRIVE ENGAGEMENT, SHAFT (23) - FOUR WHEEL DRIVE SYSTEM

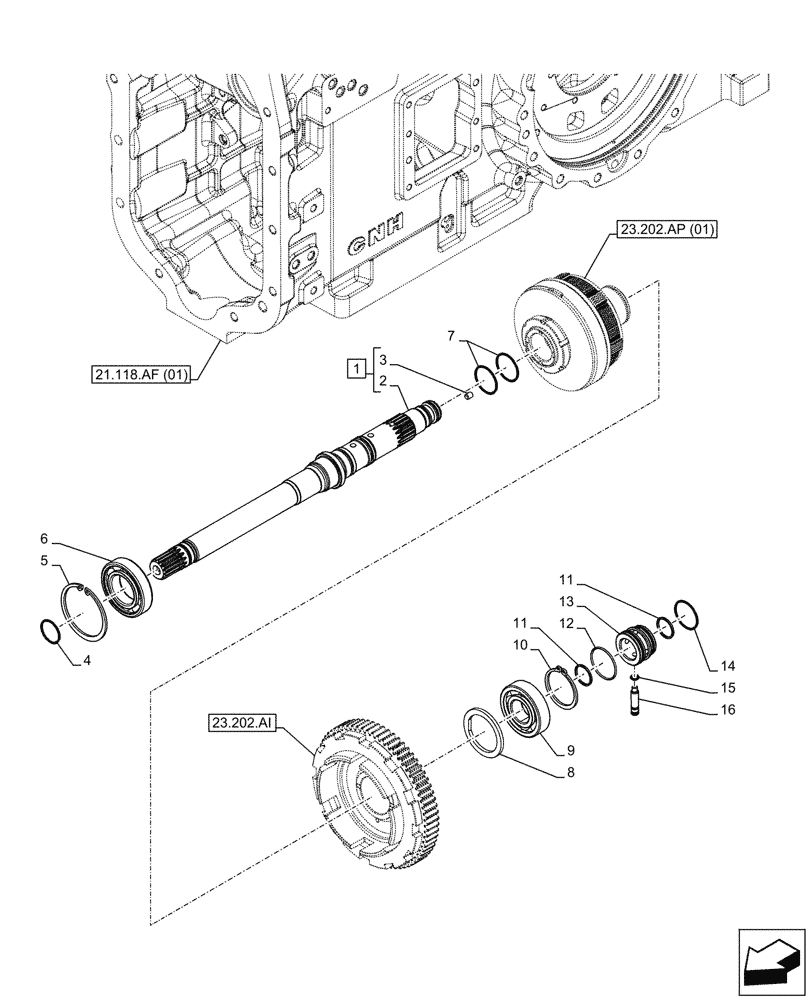

Схема запчастей Case IH MAXXUM 135 - (23.202.AD) - VAR - 392195, 392204, 743764, 743766, 758413, 758414, 758415, 758416, 758581 - FRONT-WHEEL DRIVE ENGAGEMENT, SHAFT (23) - FOUR WHEEL DRIVE SYSTEM
21.118.af (01)
16
7
9
12
11
6
11
1
8
2
4
3
15
5
14
10
13
23.202.ai
23.202.ap (01)

Артикул

Название

Примечание

Количество

1

5198208

SHAFT

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Shaft, 550.9mm, Incl in 1

1шт.

3

13789620

SET SCREW,Hex Soc, M8 x 10mm, Flat Pt

1шт.

4

14458080

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

1шт.

5

11062176

CIRCLIP,M85, Int

1шт.

6

20972850

BALL BEARING,45 mm ID x 85 mm OD x 19 mm

1шт.

7

14458680

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

2шт.

8

5193862

THRUST WASHER

1шт.

9

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

1шт.

10

5193966

CIRCLIP

1шт.

11

5185502

PISTON RING,28.5mm ID x 32mm OD x 2.1mm Thk

2шт.

12

14459180

O-RING,45.69mm ID x 2.62"

1шт.

13

47126668

MANIFOLD

1шт.

14

14458880

O-RING,40.94mm ID x 2.62" Width

1шт.

15

14452880

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

16

47126672

PIN,10.5mm OD x 46.6mm L

1шт.

Выбрано товаров: 16
