Запчасти Case IH MAXXUM 135 (21.109.AD[08]) - VAR - 391828 - OIL COOLER LINE (21) - TRANSMISSION

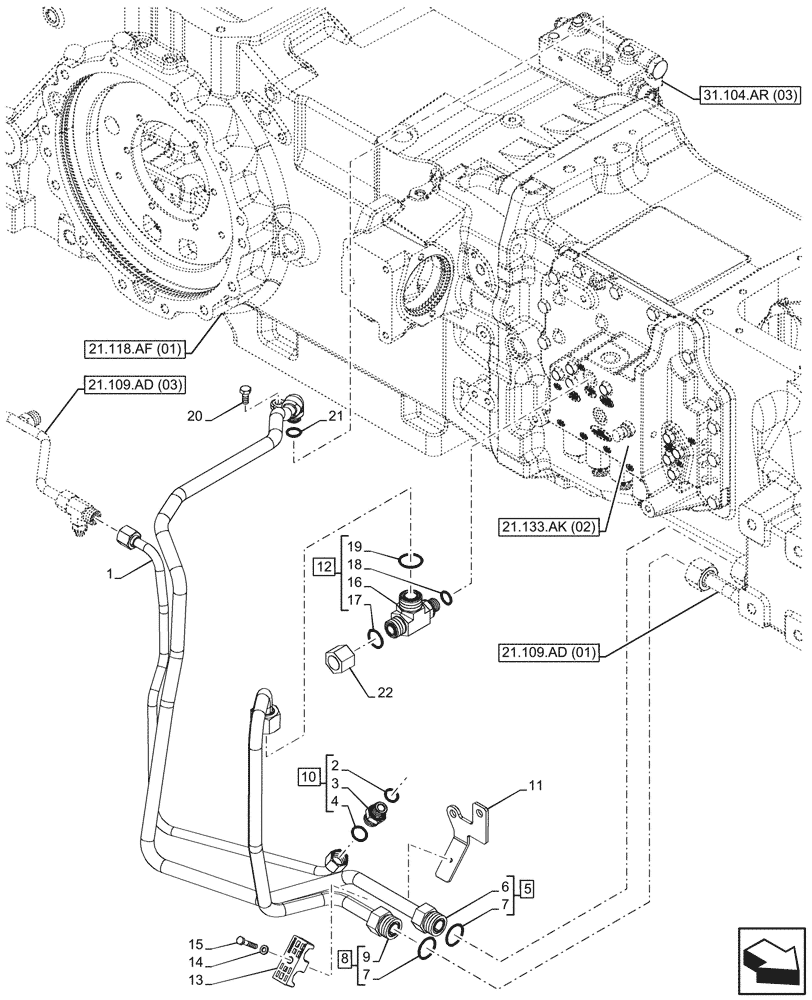

Схема запчастей Case IH MAXXUM 135 - (21.109.AD[08]) - VAR - 391828 - OIL COOLER LINE (21) - TRANSMISSION
31.104.ar (03)
20
6
15
22
12
1
17
11
9
21
3
8
16
5
19
7
13
14
10
2
4
18
7
21.109.ad (03)
21.133.ak (02)
21.109.ad (01)
21.118.af (01)

Артикул

Название

Примечание

Количество

1

84547343

HYD TUBE

From Pressure Contol Valve to Transmission

1шт.

2

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 10

1шт.

4

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

1шт.

5

47639818

PIPE

ASSY, Cooler out, Incl 6, 7 (Qty 1)

1шт.

6

NSS

NOT SOLD SEPARAT

Pipe, Incl in 5

1шт.

7

81825117

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

8

47675491

PIPE

ASSY, Cooler In, Incl 7 (Qty 1), 9

1шт.

9

NSS

NOT SOLD SEPARAT

Pipe, Incl in 8

1шт.

10

81863437

HYD CONNECTOR,M18 x 13/16"-16 ORS

ASSY, Incl 2 - 4

1шт.

11

84549403

BRACKET

1шт.

12

84301632

HYD CONNECTOR

ASSY, Incl 16 - 19

1шт.

13

84528002

CLAMP,18mm ID

1шт.

14

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

15

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

1шт.

16

NSS

NOT SOLD SEPARAT

Tee, Incl in 12

1шт.

17

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

18

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

19

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

20

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

21

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

22

9840576

CAP,1" - 14 ORFS

1шт.

Выбрано товаров: 22
