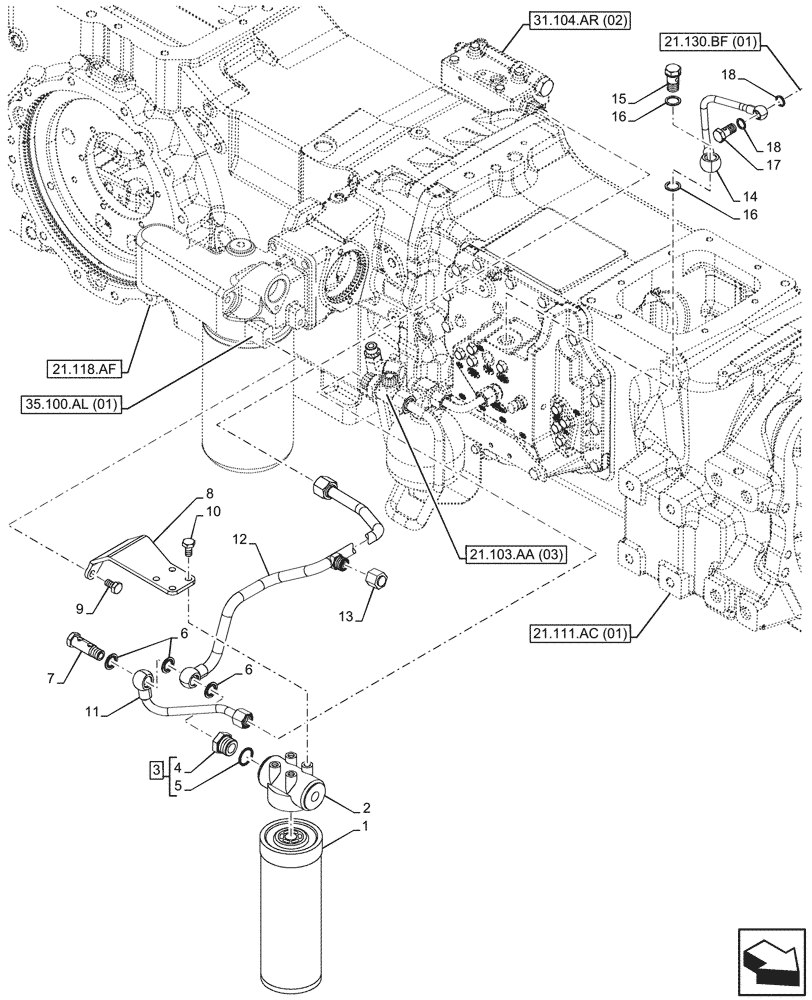

Запчасти Case IH MAXXUM 135 (21.103.AJ[01]) - VAR - 391828 - OIL FILTER (21) - TRANSMISSION

1

84226258

HYDRAULIC OIL FILTER,94mm OD x 240mm L, 1" 3/8-12UNF

1шт.

2

5185368

FILTER HEAD

1шт.

3

47125546

HYD CONNECTOR

ASSY, Incl 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

Incl in 3

1шт.

5

5185506

O-RING,23.47mm ID x 2.95mm Width

1шт.

6

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

3шт.

7

5173680

BANJO BOLT,Pipe, M18 x 1.5 x 56mm

1шт.

8

47124353

BRACKET

1шт.

9

15970424

SCREW,Hex, M10 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

10

81821827

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

11

87326940

PIPE

To accumulator

1шт.

12

47639810

PIPE

Delivery filter

1шт.

13

9840575

CAP,13/16" - 16 ORFS

1шт.

14

47123594

HYD TUBE

1шт.

15

5196881

BANJO BOLT

1шт.

16

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

2шт.

17

10184311

BANJO BOLT,M14 x 1.5 x 27mm

1шт.

18

10261160

SEALING WASHER,M14.2 x 18 x 1.5, Copper

2шт.
