Запчасти Case IH MAXXUM 135 (21.103.AA[03]) - VAR - 391828 - ACCUMULATOR (21) - TRANSMISSION

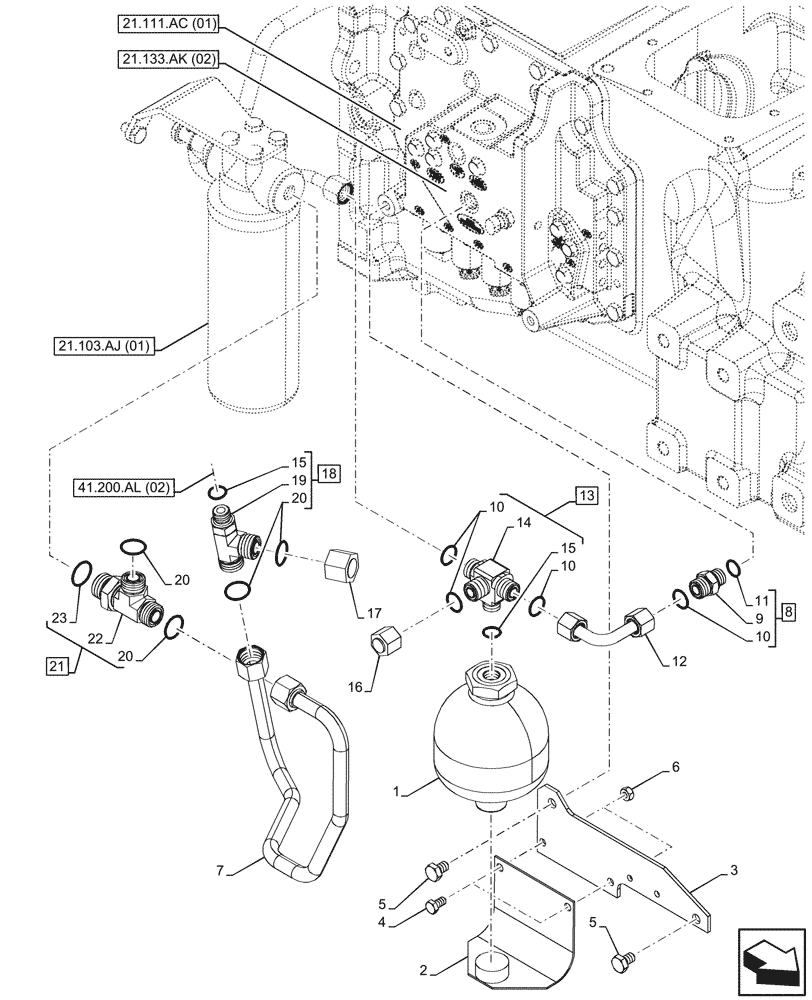

Схема запчастей Case IH MAXXUM 135 - (21.103.AA[03]) - VAR - 391828 - ACCUMULATOR (21) - TRANSMISSION
21.133.ak (02)
4
6
10
20
2
12
22
1
14
15
3
19
21
8
20
9
15
23
16
13
5
20
11
10
17
5
10
18
7
41.200.al (02)
21.103.aj (01)
21.111.ac (01)

Артикул

Название

Примечание

Количество

1

5195043

ACCUMULATOR,0.75L

1шт.

2

82009123

SUPPORT

1шт.

3

82033143

BRACKET

1шт.

4

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

5

15970324

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

6

16100824

NUT,M8, Cl 10

2шт.

7

47675493

PIPE

1шт.

8

81863437

HYD CONNECTOR,M18 x 13/16"-16 ORS

ASSY, Incl 9, 10 (Qty 1), 11

1шт.

9

NSS

NOT SOLD SEPARAT

Connector, Incl in 8

1шт.

10

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

4шт.

11

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

12

82850840

HYD TUBE,9 mm ID, 12 mm OD, 54.6, 45 mm Length

1шт.

13

47130867

HYD CONNECTOR

ASSY, Incl 10 (Qty 3), 14, 15 (Qty 1)

1шт.

14

NSS

NOT SOLD SEPARAT

Tee, Incl in 13

1шт.

15

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

16

9840575

CAP,13/16" - 16 ORFS

1шт.

17

83987627

CAP,1-14UN-2A

1шт.

18

5197177

TEE,1"-14 ORFS x 1"-14 ORFS x M18 x 1.5 ORB

ASSY, Incl 15 (Qty 1), 19, 20 (Qty 2)

1шт.

19

NSS

NOT SOLD SEPARAT

Tee, Incl in 18

1шт.

20

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

21

84470215

UNION TEE

ASSY, Incl 20 (Qty 1), 22, 23

1шт.

22

NSS

NOT SOLD SEPARAT

Tee, Incl in 21

1шт.

23

81825117

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Выбрано товаров: 23
