(82.100.AK[02]) - VAR - 743702 - FRONT LOADER, SIDE MEMBER, INTEGRATED FRONT HPL W/ PTO, EU

Запчасти Case IH MAXXUM 135 (82.100.AK[02]) - VAR - 743702 - FRONT LOADER, SIDE MEMBER, INTEGRATED FRONT HPL W/ PTO, EU (82) - FRONT LOADER & BUCKET

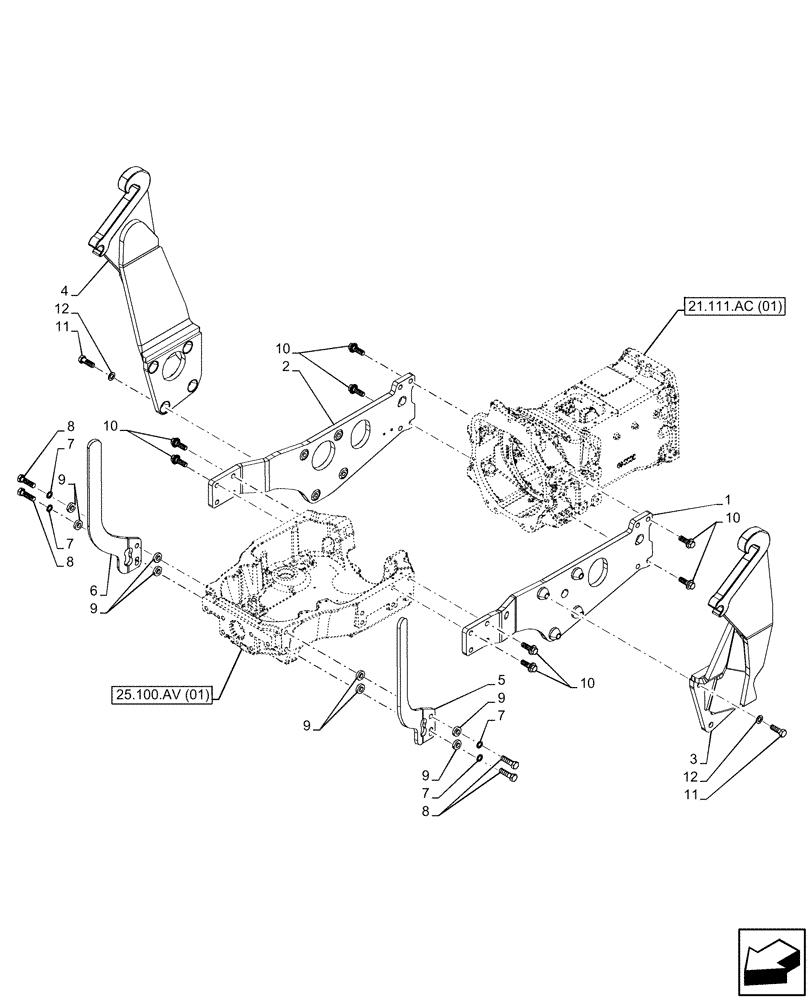

Схема запчастей Case IH MAXXUM 135 - (82.100.AK[02]) - VAR - 743702 - FRONT LOADER, SIDE MEMBER, INTEGRATED FRONT HPL W/ PTO, EU (82) - FRONT LOADER & BUCKET
25.100.av (01)
9
11
3
1
7
12
12
10
11
9
9
6
10
7
8
10
8
8
9
5
4
9
7
7
2
10
21.111.ac (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47714891

FRAME

LH

1шт.

2

47714850

FRAME

RH

1шт.

3

47614605

FRAME

LH Tower

1шт.

4

47614610

FRAME

RH Tower

1шт.

5

47569267

BRACKET

LH Grille Guard

1шт.

6

47569263

BRACKET

RH Grille Guard

1шт.

7

87602337

LOCK WASHER,21.4mm ID x 30.7mm OD x 3.4mm Thk

4шт.

8

412641

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

4шт.

9

47057709

SPACER,22mm ID x 42mm OD x 10mm L

10mm

8шт.

10

82020153

BOLT,Flng, M20 x 2.5 x 58mm, Cl 12.9

16шт.

11

15224034

BOLT,Hex, M20 x 65mm, Cl 10.9, Full Thd

8шт.

12

14497124

WASHER,21mm ID x 37mm OD x 3mm Thk

21 x 37 x 3

8шт.
