Запчасти Case IH MAXXUM 135 (55.512.CQ[05]) - VAR - 758362 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, AIR COMPRESSOR, SENSOR, HARNESS - BEGIN YR 05-NOV-2015 (55) - ELECTRICAL SYSTEMS

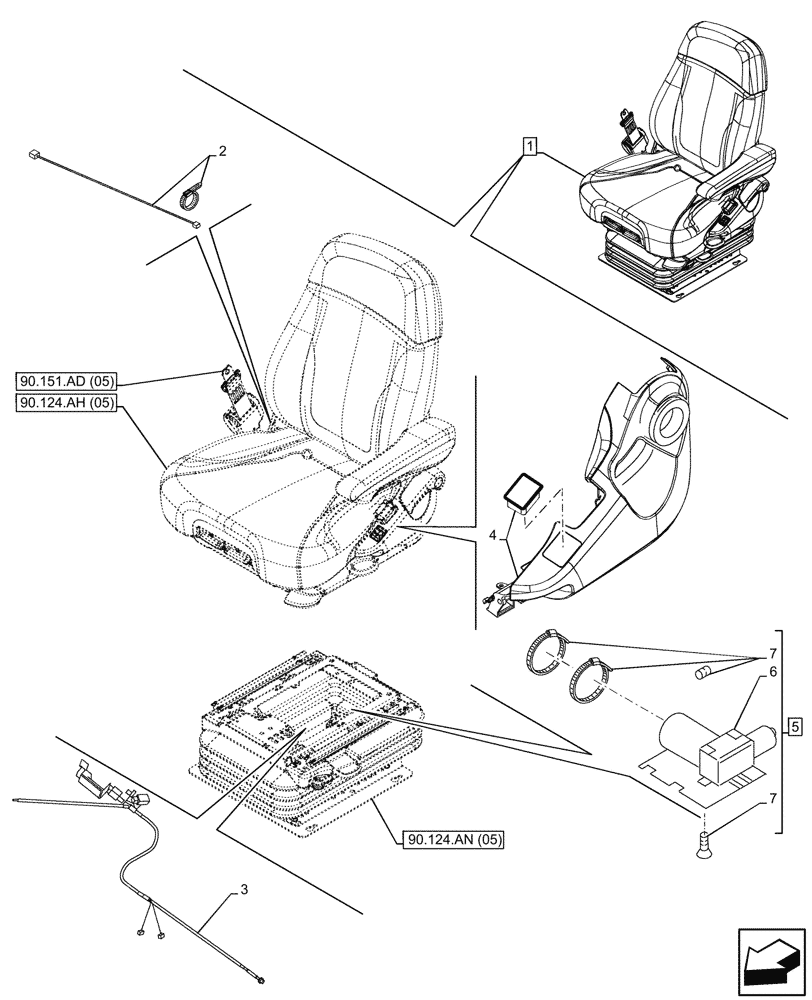

Схема запчастей Case IH MAXXUM 135 - (55.512.CQ[05]) - VAR - 758362 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, AIR COMPRESSOR, SENSOR, HARNESS - BEGIN YR 05-NOV-2015 (55) - ELECTRICAL SYSTEMS
90.151.ad (05)
2
3
1
6
5
4
7
7
90.124.an (05)
90.124.ah (05)

Артикул

Название

Примечание

Количество

1

47725229

DRIVER SEAT

ASSY, Fabric Verona Grey, De Luxe Comfort Pack EHR, Incl 2 - 7

1шт.

See also Driver Seat Components in Figure 55.512.CS (12), 90.124.AH (05), 90.124.AM (09), 90.124.AN (05), 90.124.AO (01), 90.151.AD (05)

1шт.

2

47891438

WIRE HARNESS

1шт.

3

47891532

WIRE HARNESS

1шт.

4

47891411

COVER

1шт.

5

84190980

AIR COMPRESSOR

ASSY, Incl 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Air Compressor, Incl in 5

1шт.

7

84191008

REPAIR KIT

1шт.

Выбрано товаров: 8
