Запчасти Case IH MAXXUM 135 (55.512.CQ[04]) - VAR - 758675 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ HEATED CUSHIONS, CONTROL, SWITCH (55) - ELECTRICAL SYSTEMS

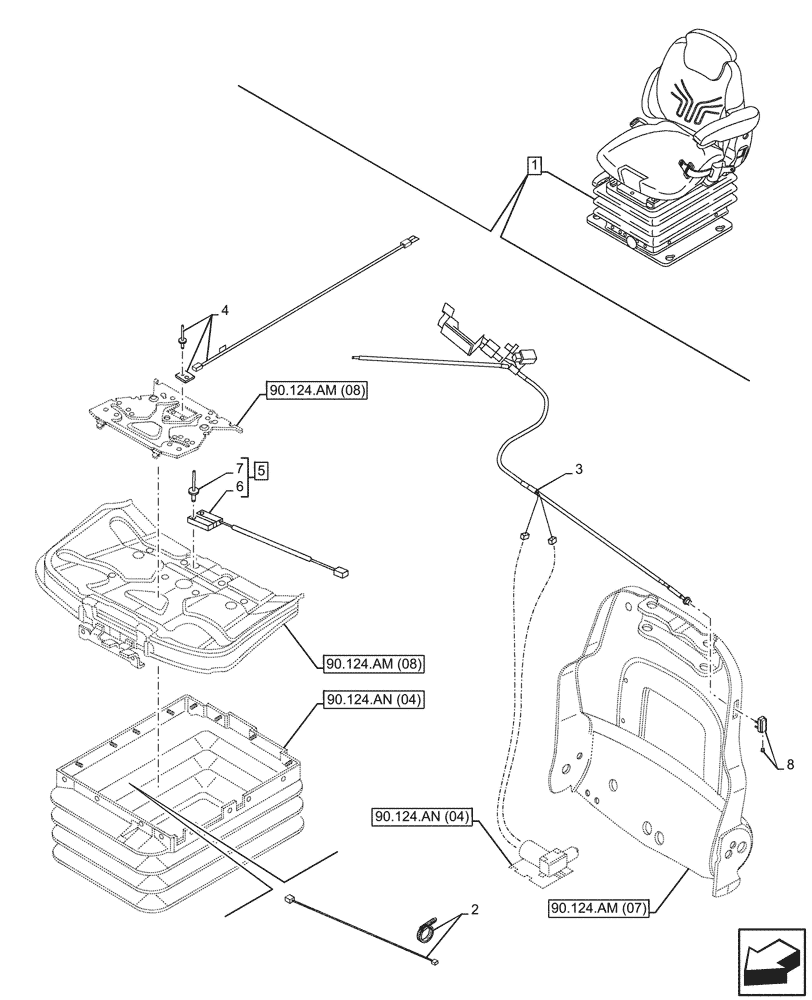

Схема запчастей Case IH MAXXUM 135 - (55.512.CQ[04]) - VAR - 758675 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ HEATED CUSHIONS, CONTROL, SWITCH (55) - ELECTRICAL SYSTEMS
90.124.am (08)
3
4
8
2
5
6
1
7
90.124.an (04)
90.124.an (04)
90.124.am (07)
90.124.am (08)

Артикул

Название

Примечание

Количество

1

47725248

DRIVER SEAT

ASSY, Deluxe Seat with Low Frequency air suspension with heated cushions & Belt, Incl 2 - 8

1шт.

See also Driver Seat Components in Figure 90.124.AD (04), 90.124.AH (04), 90.124.AK (04), 90.124.AL (04), 90.124.AM (07), 90.124.AM (08), 90.124.AN (04), 90.124.AQ (04), 90.151.AD (04)

1шт.

2

84247564

WIRE HARNESS

1шт.

3

84191074

WIRE HARNESS

Seat Suspension

1шт.

4

84191190

WIRE HARNESS

Adapter Cable

1шт.

5

84247587

SWITCH

ASSY, Incl 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Switch, Incl in 5

1шт.

7

84191201

SET OF PARTS

1шт.

Include also Small Parts in Figure 90.124.AM (08)

1шт.

8

84223027

SWITCH

Heater

1шт.

Выбрано товаров: 10
