Запчасти Case IH MAXXUM 135 (55.512.CQ[06]) - VAR - 758363 - DRIVER SEAT, W/ SEMI-ACTIVE SUSPENSION, W/ HEATED CUSHIONS, ACTIVE LEATHER COMFORT PACK, AIR COMPRESSOR, SENSOR, HARNESS (55) - ELECTRICAL SYSTEMS

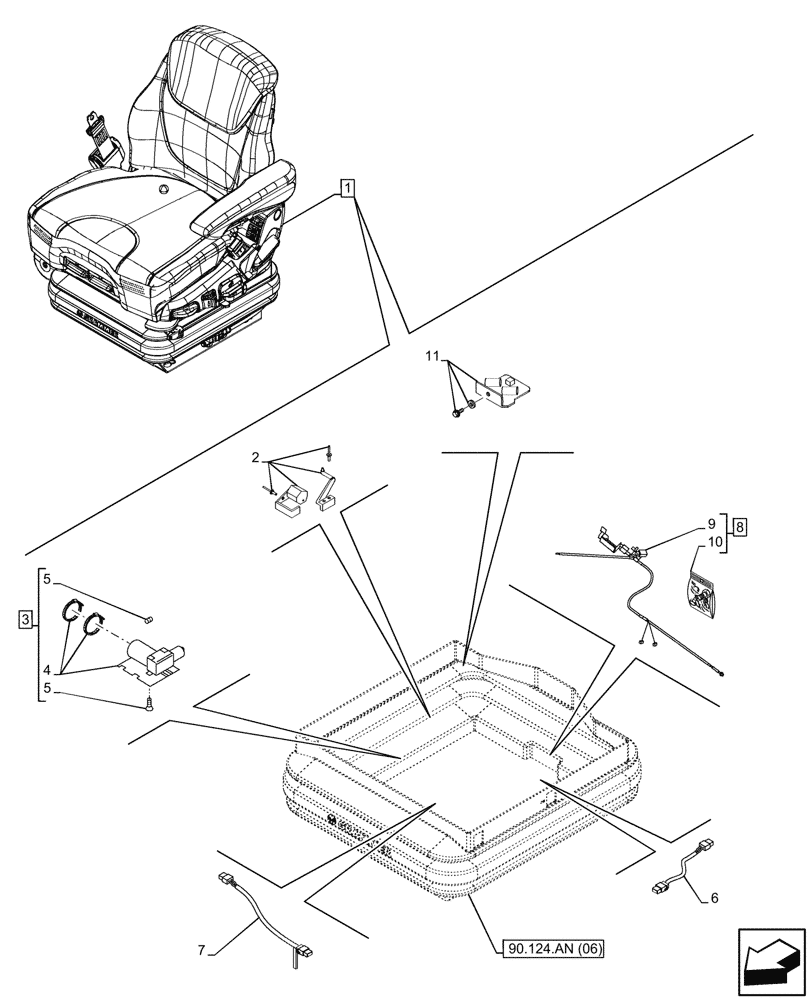

Схема запчастей Case IH MAXXUM 135 - (55.512.CQ[06]) - VAR - 758363 - DRIVER SEAT, W/ SEMI-ACTIVE SUSPENSION, W/ HEATED CUSHIONS, ACTIVE LEATHER COMFORT PACK, AIR COMPRESSOR, SENSOR, HARNESS (55) - ELECTRICAL SYSTEMS
90.124.an (06)
9
11
7
2
5
3
1
8
4
10
6
5

Артикул

Название

Примечание

Количество

1

47544026

DRIVER SEAT

ASSY, Pasubio Verona Scarlet, Active Leather Comfort Pack EHR, Incl 2 - 11

1шт.

See also Driver Seat Components in Figure 55.512.CS (13), 90.124.AH (06), 90.124.AM (09), 90.124.AN (06), 90.151.AD (06)

1шт.

2

47897028

SERVICE KIT

Driver Seat

1шт.

3

47897054

SERVICE KIT

ASSY, Air Compressor, Incl 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

Compressor, Incl in 3

1шт.

5

47897053

SERVICE KIT

Air Compressor

1шт.

6

84302174

CABLE

1шт.

7

47897059

WIRE HARNESS

1шт.

8

47897031

WIRE HARNESS

ASSY, Incl 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Harness, Incl in 9

1шт.

10

47897055

SERVICE KIT

Harness Driver Seat

1шт.

11

47897029

SERVICE KIT

Driver Seat

1шт.

Выбрано товаров: 12
