(55.512.AA[02]) - VAR - 390653 - HIGH PROFILE ROOF, RADIO, PREDISPOSITION, SPEAKER

Запчасти Case IH MAXXUM 135 (55.512.AA[02]) - VAR - 390653 - HIGH PROFILE ROOF, RADIO, PREDISPOSITION, SPEAKER (55) - ELECTRICAL SYSTEMS

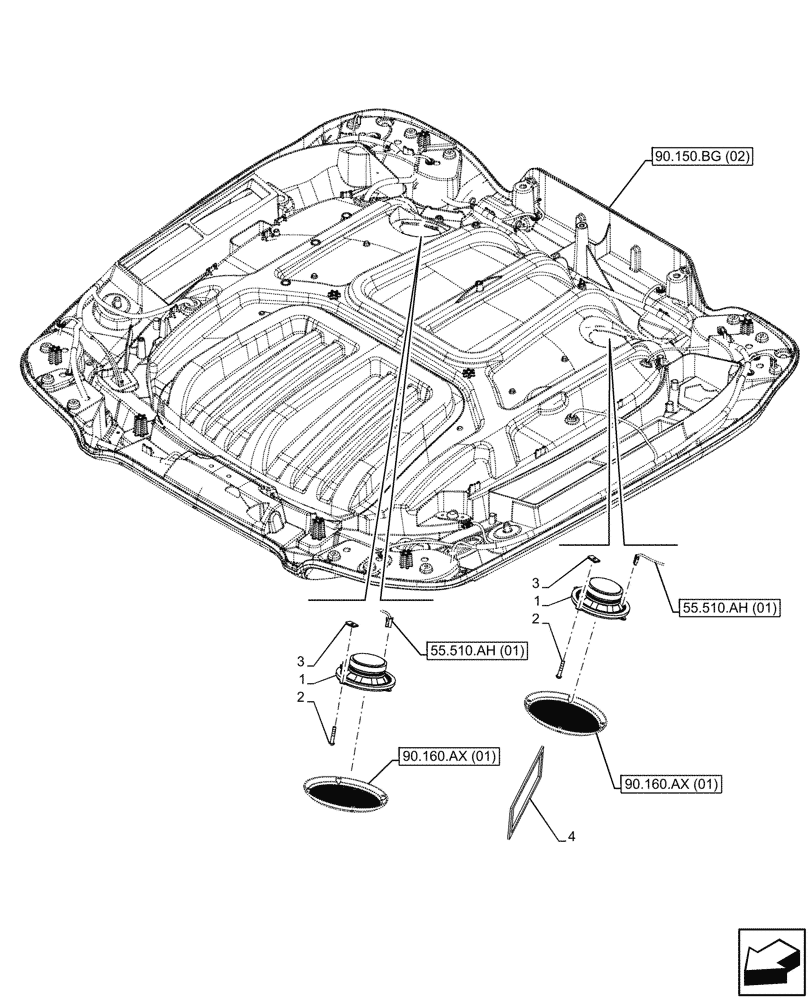

Схема запчастей Case IH MAXXUM 135 - (55.512.AA[02]) - VAR - 390653 - HIGH PROFILE ROOF, RADIO, PREDISPOSITION, SPEAKER (55) - ELECTRICAL SYSTEMS
90.160.ax (01)
4
1
3
3
1
2
2
90.150.bg (02)
55.510.ah (01)
55.510.ah (01)
90.160.ax (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87704700

SPEAKER

2шт.

2

15644401

SELF-TAP SCREW,Pan Hd, M8 x 25mm

8шт.

3

83935425

SPRING NUT,Prev Torque, #8

16шт.

4

84143970

ANTENNA

1шт.

Выбрано товаров: 4
