(55.404.BS[15]) - VAR - 744985 - CAB, LOW PROFILE ROOF, WORK LIGHT, SUPPORT

Запчасти Case IH MAXXUM 135 (55.404.BS[15]) - VAR - 744985 - CAB, LOW PROFILE ROOF, WORK LIGHT, SUPPORT (55) - ELECTRICAL SYSTEMS

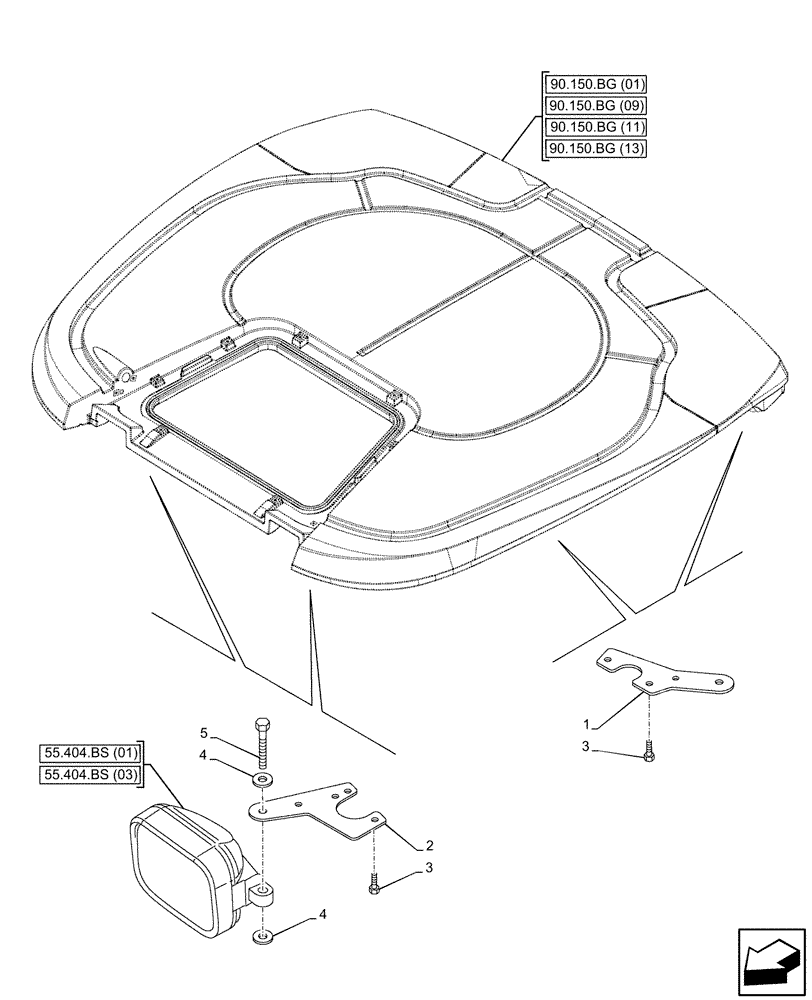

Схема запчастей Case IH MAXXUM 135 - (55.404.BS[15]) - VAR - 744985 - CAB, LOW PROFILE ROOF, WORK LIGHT, SUPPORT (55) - ELECTRICAL SYSTEMS
55.404.bs (03)
5
4
3
1
4
3
2
90.150.bg (13)
90.150.bg (01)
90.150.bg (09)
90.150.bg (11)
55.404.bs (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87527099

BRACKET

Work Lamp

2шт.

2

87527093

BRACKET

Work Lamp

2шт.

3

16044121

BOLT,Hex, M8 x 45mm, Cl 8.8

4шт.

4

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

8шт.

5

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

8шт.

Выбрано товаров: 5
