(05.100.04[05]) - MAINTENANCE PARTS - PUMPS

Запчасти Case IH MAXXUM 135 (05.100.04[05]) - MAINTENANCE PARTS - PUMPS (05) - SERVICE & MAINTENANCE

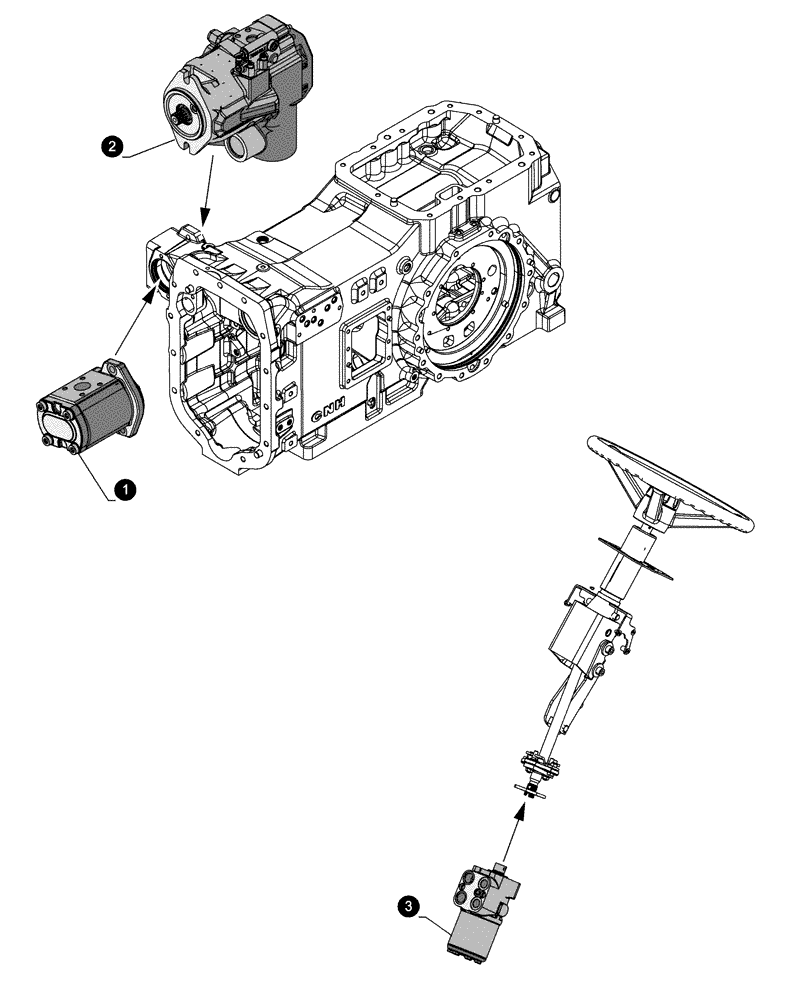

Схема запчастей Case IH MAXXUM 135 - (05.100.04[05]) - MAINTENANCE PARTS - PUMPS (05) - SERVICE & MAINTENANCE
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84355757

HYDRAULIC PUMP,21.95 CC

On Axle Housing

1шт.

2

84353126

HYDRAULIC PUMP,Gear, 56 CC / 74 CC

On Axle Housing

1шт.

3

47403439

STEERING VALVE

Steering Column

1шт.

3

47403438

STEERING VALVE

Steering Column

1шт.

3

47592667

STEERING VALVE

Steering Column

1шт.

3

47403444

STEERING VALVE

Steering Column

1шт.

3

47395762

STEERING VALVE

Steering Column

1шт.

3

47592666

STEERING VALVE

Steering Column

1шт.

Выбрано товаров: 8
