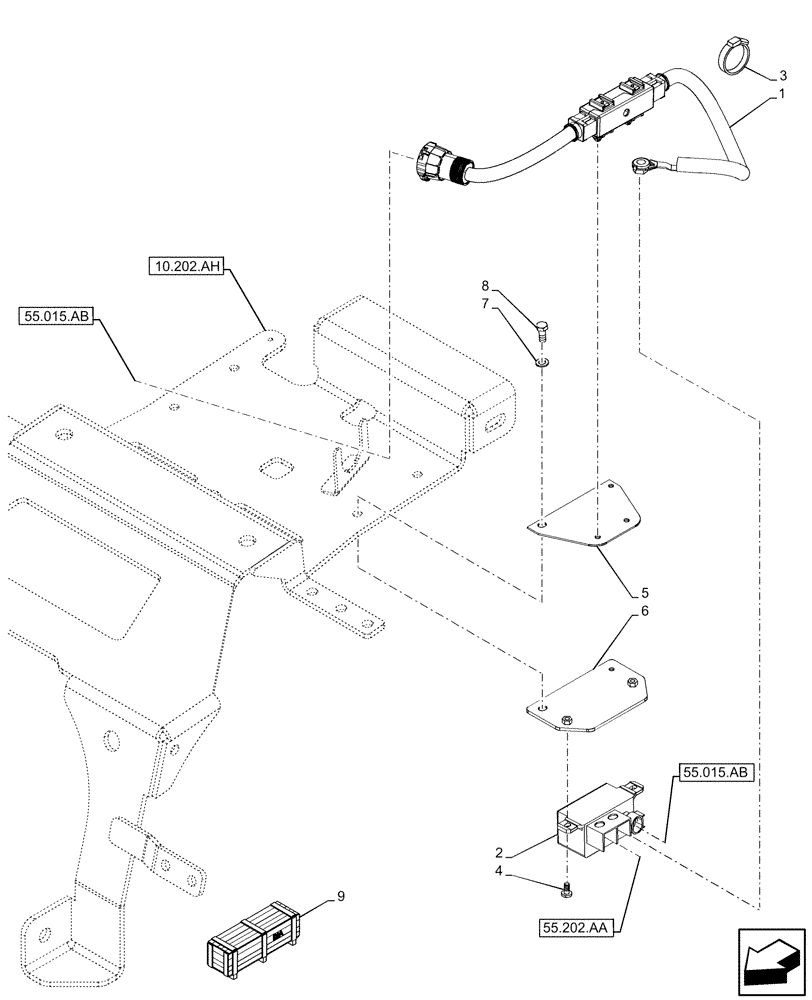

Запчасти Case IH MAXXUM 135 (55.202.AC) - VAR - 758401, 758402, 758403 - COLD START SYSTEM, GRID HEATER (55) - ELECTRICAL SYSTEMS

1

47634969

WIRE HARNESS

Grid Heater

1шт.

2

82022813

RELAY,12V, High Current

12V

1шт.

3

14560287

CABLE TIE,207.00mm L

3шт.

4

83998908

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 4.8, Full Thd

2шт.

5

47536191

BRACKET

1шт.

6

47562062

BRACKET

1шт.

7

14499401

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

4шт.

8

16043514

SCREW,Hex, M8 x 22mm, Cl 5.8

4шт.

9

718203104

DIA KIT, TRACTOR

Grid Heater, Incl 1 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
