(55.100.AF[01]) - VAR - 743702 - FRONT LOADER, HARNESS, RELAY, EU

Запчасти Case IH MAXXUM 135 (55.100.AF[01]) - VAR - 743702 - FRONT LOADER, HARNESS, RELAY, EU (55) - ELECTRICAL SYSTEMS

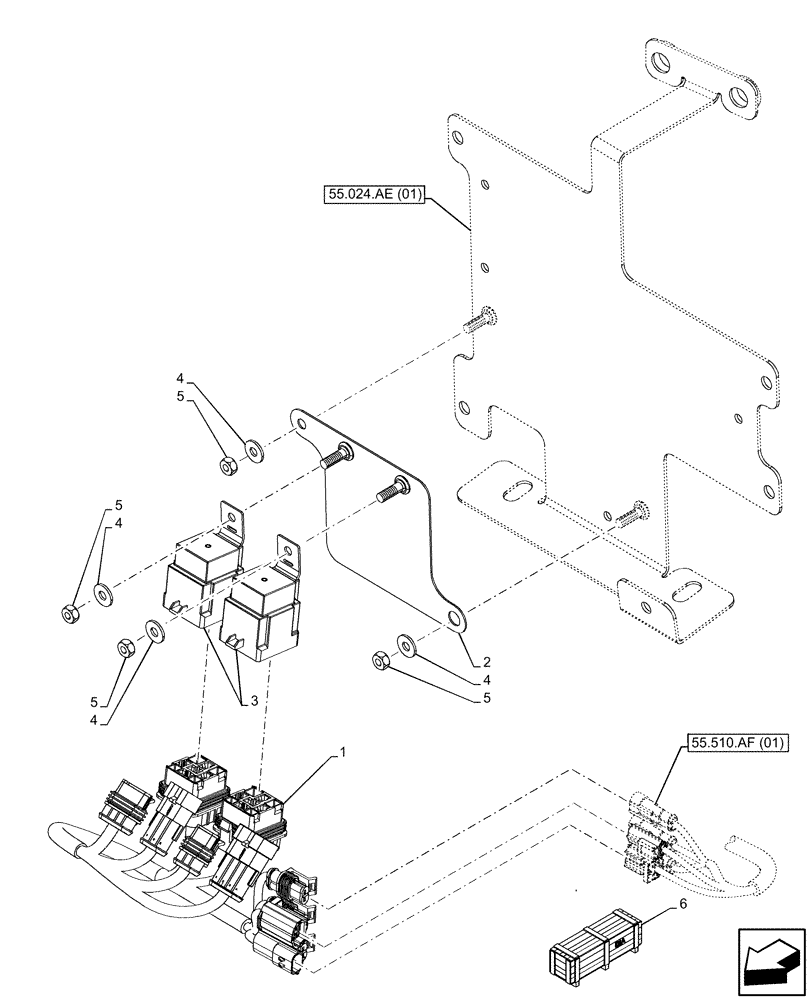

Схема запчастей Case IH MAXXUM 135 - (55.100.AF[01]) - VAR - 743702 - FRONT LOADER, HARNESS, RELAY, EU (55) - ELECTRICAL SYSTEMS
55.024.ae (01)
5
2
5
4
4
5
1
4
3
6
4
5
55.510.af (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47691206

WIRE HARNESS

Loader

1шт.

2

47697904

BRACKET

1шт.

3

82017871

RELAY,12V, 20A

35A 12V

2шт.

4

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

4шт.

5

15896211

NUT,M6, Cl 8

4шт.

6

719705064

DIA KIT, TRACTOR

European Loader Ready, Incl 1, 3 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 7
