Запчасти Case IH MAXXUM 135 (55.050.AL[02]) - VAR - 758482 - AIR CONDITIONING WITH ATC, HARNESS (55) - ELECTRICAL SYSTEMS

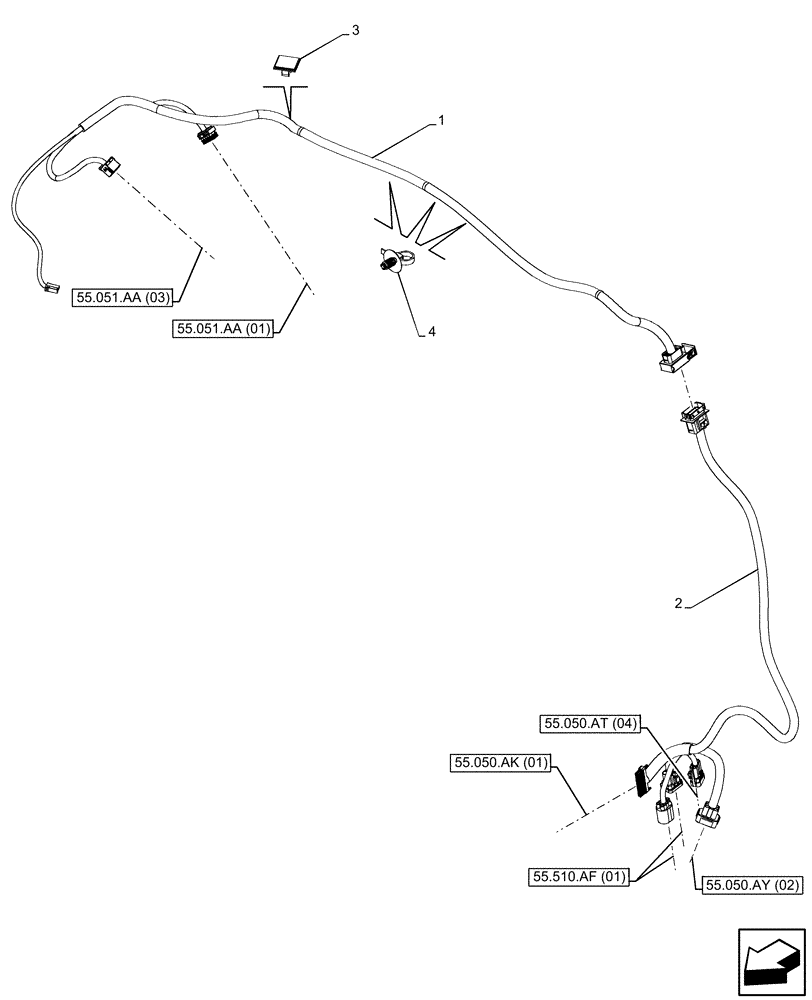

Схема запчастей Case IH MAXXUM 135 - (55.050.AL[02]) - VAR - 758482 - AIR CONDITIONING WITH ATC, HARNESS (55) - ELECTRICAL SYSTEMS
55.051.aa (03)
4
1
2
3
55.510.af (01)
55.050.at (04)
55.050.ak (01)
55.050.ay (02)
55.051.aa (01)

Артикул

Название

Примечание

Количество

1

47644985

WIRE HARNESS

Air Conditionin with ATC

1шт.

2

47617310

WIRE HARNESS

Air Conditionin with ATC

1шт.

3

47518897

CLIP,4.5mm ID

1шт.

4

82033028

CABLE TIE,170mm L

170mm

3шт.

Выбрано товаров: 4
