Запчасти Case IH MAXXUM 135 (55.047.AA[02]) - VAR - 758422 - SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK & STRG SENSOR, STEERING, SENSOR (55) - ELECTRICAL SYSTEMS

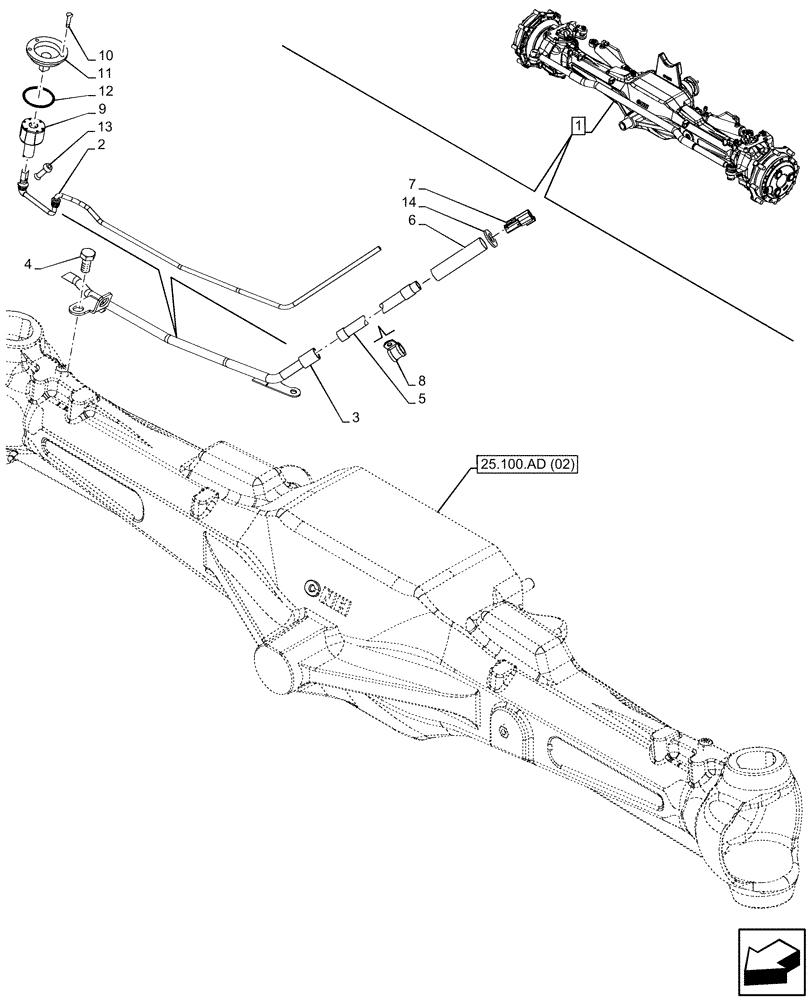

Схема запчастей Case IH MAXXUM 135 - (55.047.AA[02]) - VAR - 758422 - SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK & STRG SENSOR, STEERING, SENSOR (55) - ELECTRICAL SYSTEMS
25.100.ad (02)
8
10
2
4
3
9
12
5
14
11
6
13
1
7

Артикул

Название

Примечание

Количество

1

84181140

LIVE FRONT AXLE

ASSY, Incl 2 - 13

1шт.

See also Axle Components in Figure 25.100.AA (02), 25.100.AD (02), 25.108.AA (02), 25.108.AB (03), 25.108.AG (02), 25.108.AN (02), 41.216.AN (02)

1шт.

2

87616286

ELEC CONNECTOR

1шт.

3

87717287

HYD TUBE,12mm OD

1шт.

4

15540324

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

5

87619680

FLEXIBLE SHEATH

1шт.

6

87619627

HOSE PROTECTION

Termoreduction

1шт.

7

82918426

ELEC CONNECTOR,Female

1шт.

8

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

14mm

1шт.

9

87627614

SENSOR

Steering for 4wd Axle

1шт.

10

13299218

SCREW,Pozidriv Flat Hd, Csk, M5 x 12mm, Cl 5.8

3шт.

11

84384510

TOP

1шт.

12

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

13

82918419

PLUG

1шт.

14

82918451

SPACER

1шт.

Выбрано товаров: 15
