(55.036.AG) - VAR - 391223, 758538, 758539 - OIL PRESSURE GAUGE, SENSOR

Запчасти Case IH MAXXUM 135 (55.036.AG) - VAR - 391223, 758538, 758539 - OIL PRESSURE GAUGE, SENSOR (55) - ELECTRICAL SYSTEMS

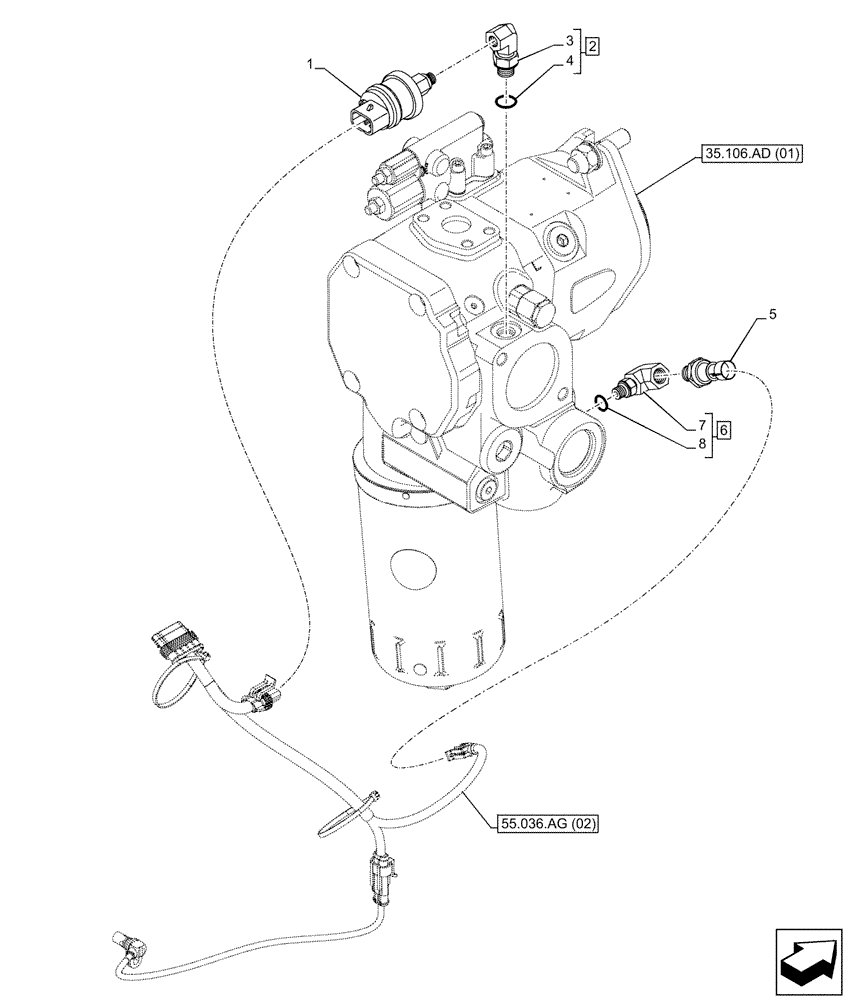

Схема запчастей Case IH MAXXUM 135 - (55.036.AG) - VAR - 391223, 758538, 758539 - OIL PRESSURE GAUGE, SENSOR (55) - ELECTRICAL SYSTEMS
35.106.ad (01)
2
7
1
4
8
3
6
5
55.036.ag (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82025340

RESTRICTION SWITCH

Vacuum Switch

1шт.

2

87667432

HYD CONNECTOR,M10 x 1 x M14 x 1.5

ASSY, Incl 2, 3

1шт.

3

NSS

NOT SOLD SEPARAT

Elbow, Incl in 2

1шт.

4

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

5

87564684

SWITCH ASSY

Pressure Switch

1шт.

6

84247208

HYD CONNECTOR,1/4" - 18 DRYSEAL NPTF - M10 x 1

ASSY, Incl 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Elbow, Incl in 6

1шт.

8

14437585

O-RING,8.00mm ID x 1.50mm

1шт.

Выбрано товаров: 8
